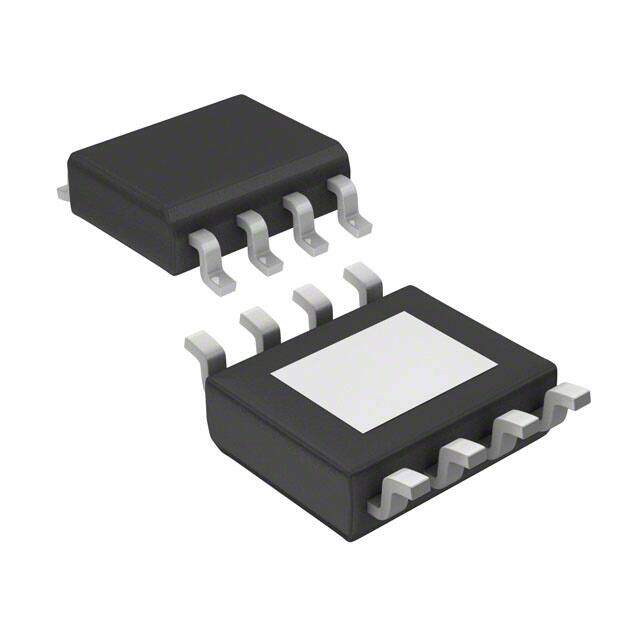

L7985ATR
RoHS
RoHS compliant
RoHS compliantPackage 8-SOIC (0.154, 3.90mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
L7985 Tape & Reel (TR) ACTIVE (Last Updated: 6months ago) Active DC to DC switching regulator 38V 2A 2W 250kHz~1MHz
PDF
/
Buying Options
Total Price: USD $2.16
Unit Price: USD $2.1648
≥1 USD $2.1648
≥10 USD $1.94568
≥100 USD $1.834976
≥500 USD $1.563584
≥1000 USD $1.468122
≥3000 USD $1.284606
Inventory: 30829
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Min Output Voltage 600mV
Synchronous Rectifier No
Reference Voltage 600mV
Frequency - Switching 250kHz~1MHz
Control Mode VOLTAGE-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.6V
Max Output Voltage 38V
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Voltage - Input (Min) 4.5V
Max Output Current 2A
Output Type Adjustable
Output Voltage 38V
Number of Outputs 1
Function Step-Down
Base Part Number L7985
Terminal Form GULL WING
Terminal Position DUAL
Max Power Dissipation 2W
Subcategory Switching Regulator or Controllers
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Number of Pins 8
Package / Case 8-SOIC (0.154, 3.90mm Width) Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold, Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Factory Lead Time 11 Weeks
