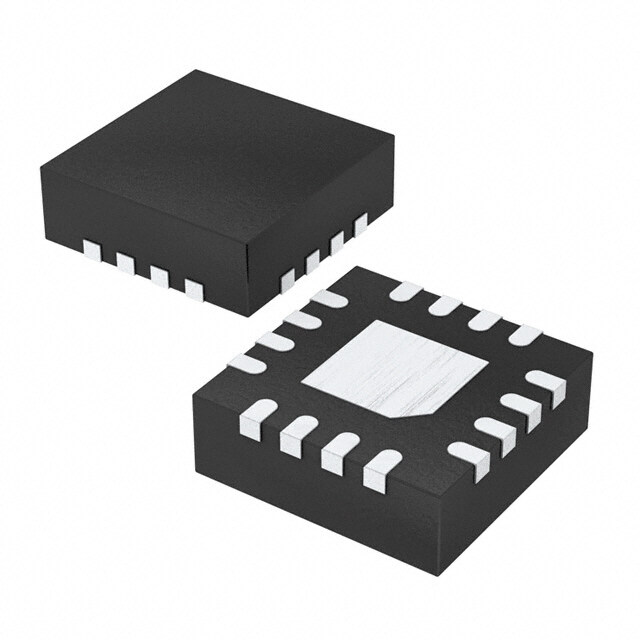

TS3300ITQ1633
RoHS
/
Package 16-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Strip Obsolete Step-Up POWER SUPPLY SUPPORT CIRCUIT DC to DC switching regulator 3.6V 3mm 365mA Switch -40C~85C TA
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.770071
≥1 USD $0.770071
≥10 USD $0.726489
≥100 USD $0.685363
≥500 USD $0.646572
≥1000 USD $0.609964
Inventory: 1187
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-WFQFN Exposed Pad
Number of Pins 16
Weight 57.09594mg
Technical
Operating Temperature -40°C~85°C TA
Packaging Strip
Published 2014
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
ECCN Code EAR99
Terminal Position QUAD
Terminal Form NO LEAD
Supply Voltage 1.2V
Terminal Pitch 0.5mm
Function Step-Up
Number of Outputs 1
Voltage - Input (Max) 3V
Output Voltage 3.6V
Output Type Adjustable
Voltage - Input (Min) 0.6V
Supply Voltage-Max (Vsup) 3V
Number of Channels 2
Min Supply Voltage 600mV
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Operating Supply Current 3.5μA
Output Configuration Positive
Current - Output 365mA Switch
Min Output Voltage 1.8V
Synchronous Rectifier Yes
Topology Boost
Voltage - Output (Min/Fixed) 1.8V
Max Output Voltage 3.6V
Adjustable Threshold YES
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 3mm
Length 3mm
Height Seated (Max) 0.8mm
