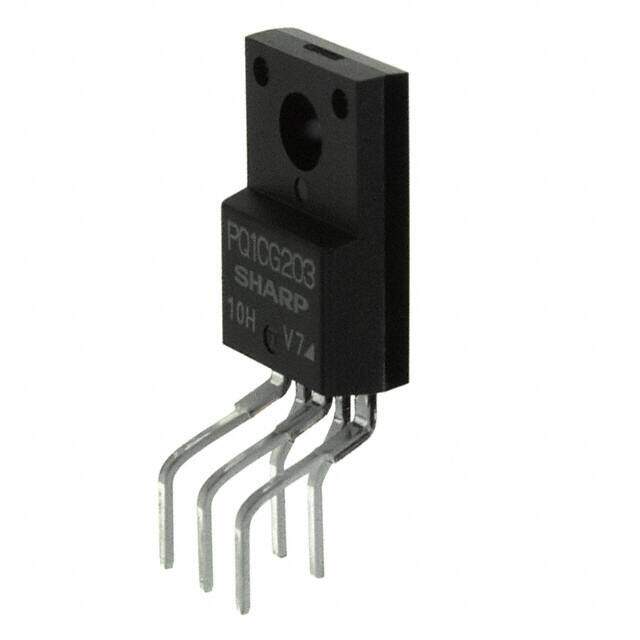

PQ1CG2032FZH image
Favorite
PQ1CG2032FZH image
Favorite
RoHS
RoHS RoHS compliant
Package TO-220-5 Formed Leads
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description Tube Tin/Copper (Sn/Cu) Discontinued Step-Down DC to DC switching regulator 12V 3.5A 70kHz -20C~80C TA
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8056
≥1 USD $0.8056
≥10 USD $0.6612
≥100 USD $0.6403
≥500 USD $0.62035
≥1000 USD $0.59945
Inventory: 9795
Minimum: 1
-
+

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case TO-220-5 Formed Leads

Technical

Operating Temperature -20°C~80°C TA
Packaging Tube
JESD-609 Code e2
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Terminal Finish Tin/Copper (Sn/Cu)
Terminal Position ZIG-ZAG
JESD-30 Code R-PZFM-T5
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 35V
Output Voltage -30V
Output Type Adjustable
Voltage - Input (Min) 8V
Input Voltage-Nom 12V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive or Negative
Current - Output 3.5A
Voltage - Output (Min/Fixed) ±1.26V
Topology Buck
Frequency - Switching 70kHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier No
Voltage - Output (Max) 35V -30V

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
