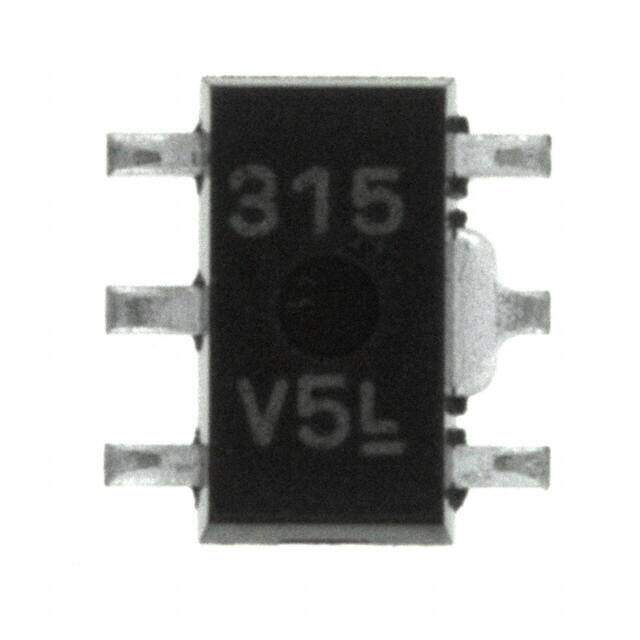

PQ2L3152MSPQ
RoHS
/
Package SOT-89
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) TIN BISMUTH Obsolete Lead Free DC to DC switching regulator 160mV 4.5mm 250muA 900mW
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.176
≥1 USD $0.176
≥10 USD $0.14872
≥100 USD $0.140096
≥500 USD $0.126896
≥1000 USD $0.118518
≥3000 USD $0.115491
Inventory: 863
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case SOT-89
Technical
Packaging Tape & Reel (TR)
Published 2006
JESD-609 Code e6
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Terminal Finish TIN BISMUTH
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Max Power Dissipation 900mW
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 1.5mm
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDSO-G6
Number of Outputs 2
Qualification Status Not Qualified
Output Voltage 1.5V
Output Type Fixed
Max Output Current 250mA
Output Current 250mA
Output Voltage 1 3.3V
Max Input Voltage 9V
Dropout Voltage 160mV
Min Output Voltage 1.5V
Input Bias Current 250μA
Output Voltage 2 1.5V
Dimensions
Height Seated (Max) 1.7mm
Length 4.5mm
Compliance
Lead Free Lead Free
