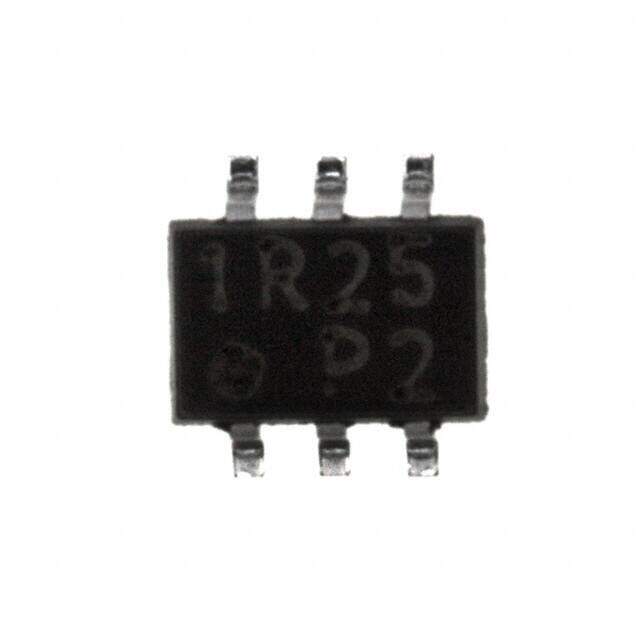

PQ1R25
RoHS
/
Package SOT-23-6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Cut Tape (CT) Tin/Lead (Sn/Pb) Obsolete Contains Lead DC to DC switching regulator 290mV 2.2mm 150mA 80C
PDF
/
Buying Options
Total Price: USD $0.47
Unit Price: USD $0.4664
≥1 USD $0.4664
≥10 USD $0.30712
≥100 USD $0.266112
≥500 USD $0.220264
≥1000 USD $0.198774
≥3000 USD $0.184782
Inventory: 1077
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 2.2mm
Length 3.4mm
Technical
Regulator Type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Dropout Voltage 290mV
Input Voltage (Max) 8.5V
Number of Regulators 1
Input Voltage (Min) 3.5V
Output Voltage 1 2.5V
Output Current 150mA
Output Voltage 2.5V
Qualification Status Not Qualified
JESD-30 Code R-PDSO-G6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Terminal Pitch 0.95mm
Number of Functions 1
Peak Reflow Temperature (Cel) 240
Terminal Form GULL WING
Terminal Position DUAL
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Published 2002
Packaging Cut Tape (CT)
Physical
Package / Case SOT-23-6
Mount Surface Mount
Alternative Model
