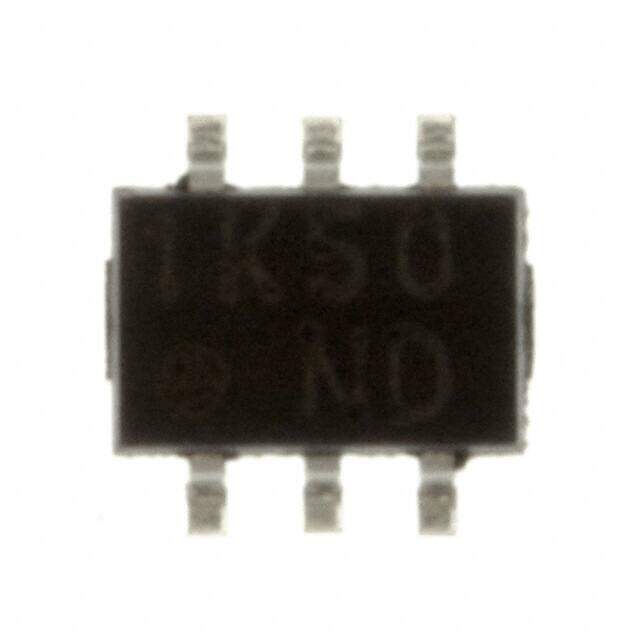

PQ1K503M2ZP
RoHS
/
Package SOT-23-6
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Cut Tape (CT) Obsolete Contains Lead FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR DC to DC switching regulator 400mV 2.2mm 300mA 80C
PDF
/
Buying Options
Total Price: USD $0.35
Unit Price: USD $0.352
≥1 USD $0.352
≥10 USD $0.23408
≥100 USD $0.202752
Inventory: 119
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case SOT-23-6
Technical
Packaging Cut Tape (CT)
Published 2000
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 240
Number of Functions 1
Terminal Pitch 0.95mm
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDSO-G6
Qualification Status Not Qualified
Output Voltage 5V
Output Current 300mA
Output Voltage 1 5V
Input Voltage (Min) 6V
Number of Regulators 1
Input Voltage (Max) 9V
Dropout Voltage 400mV
Regulator Type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Dimensions
Length 3.4mm
Width 2.2mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
