PQ1CZ41H2ZPH
RoHS
/

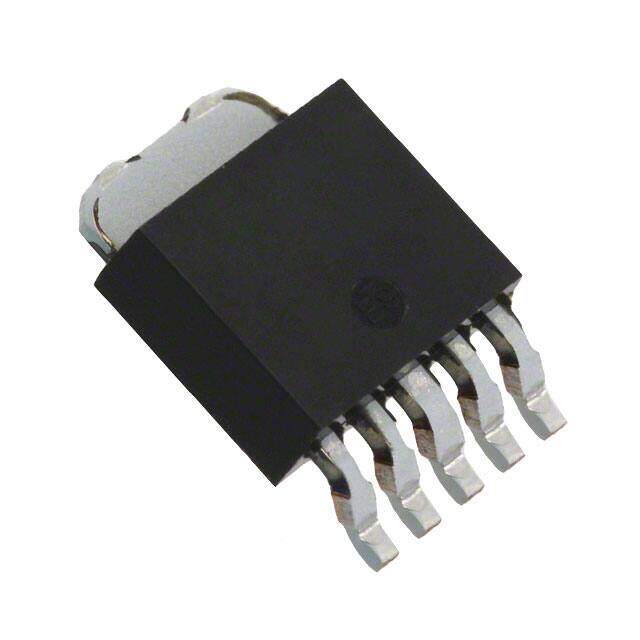

Package TO-252-6, DPak (5 Leads + Tab)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) Tin/Copper (Sn/Cu) Obsolete Step-Down DC to DC switching regulator 12V 5.5mm 1.5A 300kHz
PDF
/
Buying Options
Total Price: USD $18.79
Unit Price: USD $18.79385
≥1 USD $18.79385
≥10 USD $15.4204
≥100 USD $14.93875
≥500 USD $14.4571
≥1000 USD $13.97545
Inventory: 810
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-252-6, DPak (5 Leads + Tab)
Number of Pins 63
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2000
JESD-609 Code e2
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Terminal Finish Tin/Copper (Sn/Cu)
Terminal Position SINGLE
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
JESD-30 Code R-PSSO-G5
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 35V
Output Voltage -30V
Output Type Adjustable
Max Output Current 1.5A
Voltage - Input (Min) 8V
Input Voltage-Nom 12V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive or Negative
Voltage - Output (Min/Fixed) ±1.26V
Topology Buck
Frequency - Switching 300kHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier No
Voltage - Output (Max) 35V -30V
Dimensions
Height Seated (Max) 3.05mm
Width 5.5mm
Compliance
RoHS Status RoHS Compliant
