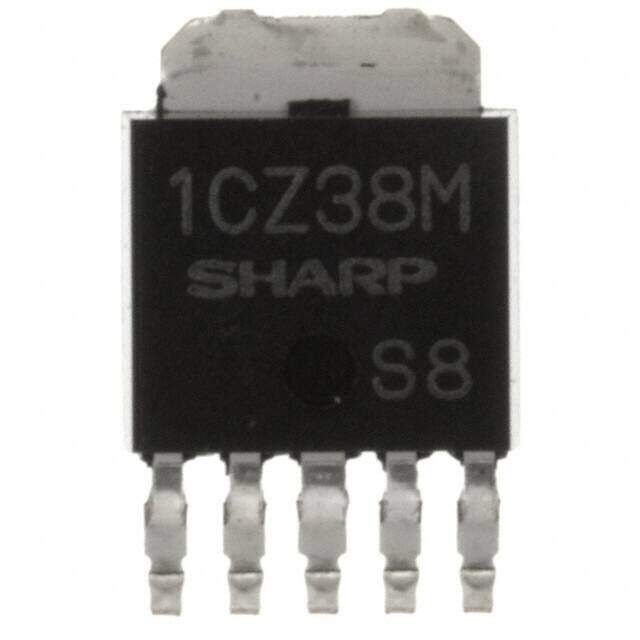

PQ1CZ38M2ZZ
RoHS
/
Package TO-252-6, DPak (5 Leads + Tab)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tube Tin/Lead (Sn/Pb) Obsolete Step-Down DC to DC switching regulator -30V 800mA 300kHz -20C~80C TA
PDF
/
Inventory: 4359
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Control Mode VOLTAGE-MODE
Frequency - Switching 300kHz
Synchronous Rectifier No
Voltage - Output (Max) 35V -30V
Operating Temperature -20°C~80°C TA
Packaging Tube
Published 2001
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Terminal Finish Tin/Lead (Sn/Pb)
Subcategory Switching Regulator or Controllers
Technology BIPOLAR
Terminal Position SINGLE
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 35V
Output Voltage -30V
Output Type Adjustable
Voltage - Input (Min) 8V
Output Configuration Positive or Negative
Current - Output 800mA
Voltage - Output (Min/Fixed) ±1.26V
Topology Buck
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-252-6, DPak (5 Leads + Tab)
