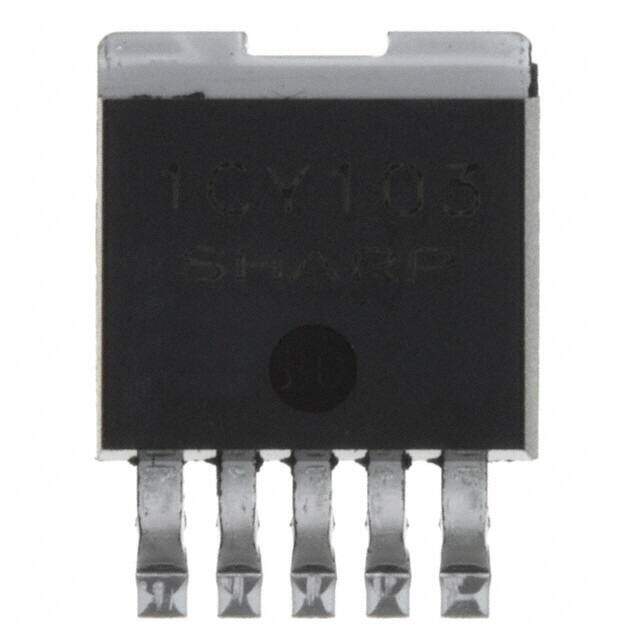

PQ1CY1032ZZ
RoHS
/
Package TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tube Tin/Lead (Sn/Pb) Obsolete Step-Down DC to DC switching regulator -30V 3.5A 150kHz -20C~85C TA
PDF
/
Inventory: 4005
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Technical
Operating Temperature -20°C~85°C TA
Packaging Tube
Published 2000
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Terminal Finish Tin/Lead (Sn/Pb)
Subcategory Switching Regulator or Controllers
Terminal Position SINGLE
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 35V
Output Voltage -30V
Output Type Adjustable
Voltage - Input (Min) 8V
Output Configuration Positive or Negative
Current - Output 3.5A
Voltage - Output (Min/Fixed) ±1.26V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 150kHz
Synchronous Rectifier No
Voltage - Output (Max) 35V -30V
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
