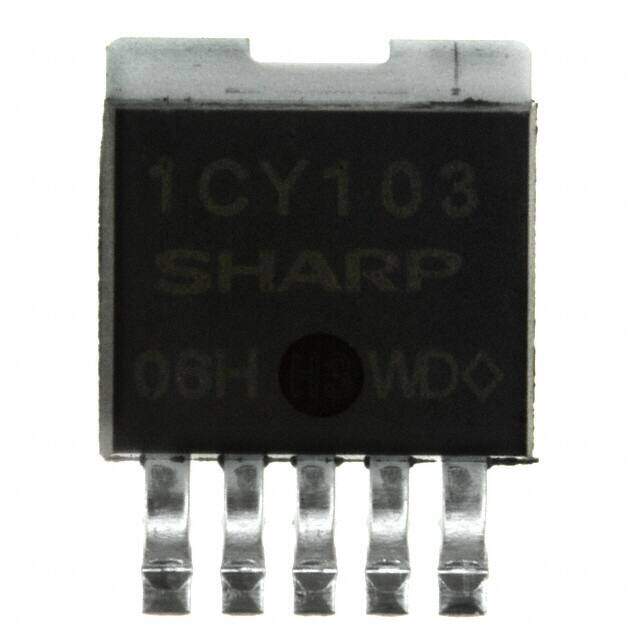

PQ1CY1032ZPH
RoHS
/
Package TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) TIN COPPER Obsolete Step-Down DC to DC switching regulator 12V 8.4mm 3.5A 150kHz
PDF
/
Buying Options
Total Price: USD $1.38
Unit Price: USD $1.3832
≥1 USD $1.3832
≥10 USD $1.13525
≥100 USD $1.09915
≥500 USD $1.064
≥1000 USD $1.02885
Inventory: 700
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 8.4mm
Height Seated (Max) 4.25mm
Technical
Voltage - Output (Max) 35V -30V
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 150kHz
Topology Buck
Voltage - Output (Min/Fixed) ±1.26V
Current - Output 3.5A
Output Configuration Positive or Negative
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 8V
Output Type Adjustable
Output Voltage -30V
Voltage - Input (Max) 35V
Efficiency 80 %
Number of Outputs 1
Function Step-Down
JESD-30 Code R-PSSO-G5
Terminal Form GULL WING
Terminal Position SINGLE
Terminal Finish TIN COPPER
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e2
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -20°C~85°C TA
Physical
Package / Case TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Mounting Type Surface Mount
Mount Surface Mount
