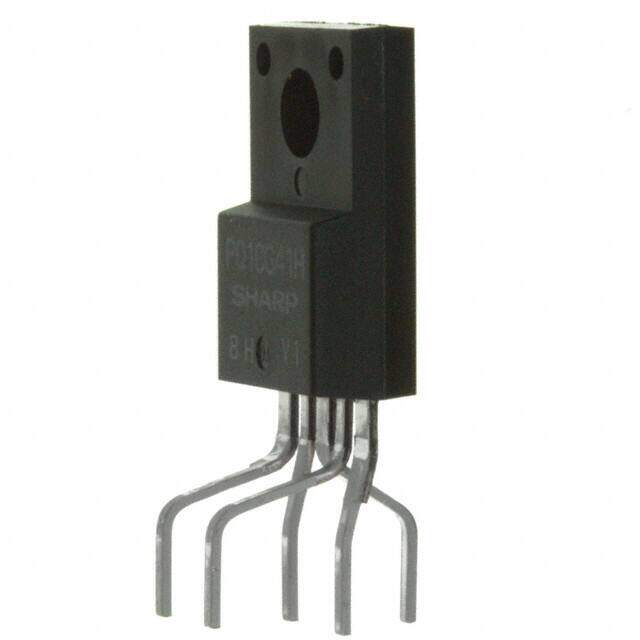

PQ1CG41H2RZH
RoHS
/
Package TO-220-5
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tube TIN COPPER Obsolete SWITCHING REGULATOR DC to DC switching regulator 12V 1.5A 300kHz 80C
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.616
≥1 USD $0.616
≥10 USD $0.46904
≥100 USD $0.40744
≥500 USD $0.388608
≥1000 USD $0.367418
Inventory: 491
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Switching Frequency 300kHz
Switcher Configuration BUCK
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Max Input Voltage 40V
Output Current 1.5A
Analog IC - Other Type SWITCHING REGULATOR
Temperature Grade COMMERCIAL EXTENDED
Input Voltage-Nom 12V
Max Output Current 1.5A
Output Type Adjustable
Output Voltage -30V
Number of Outputs 1
JESD-30 Code R-PZFM-T5
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position ZIG-ZAG
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Terminal Finish TIN COPPER
Number of Terminations 5
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
JESD-609 Code e2
Published 2007
Packaging Tube
Physical
Package / Case TO-220-5
Mount Through Hole
