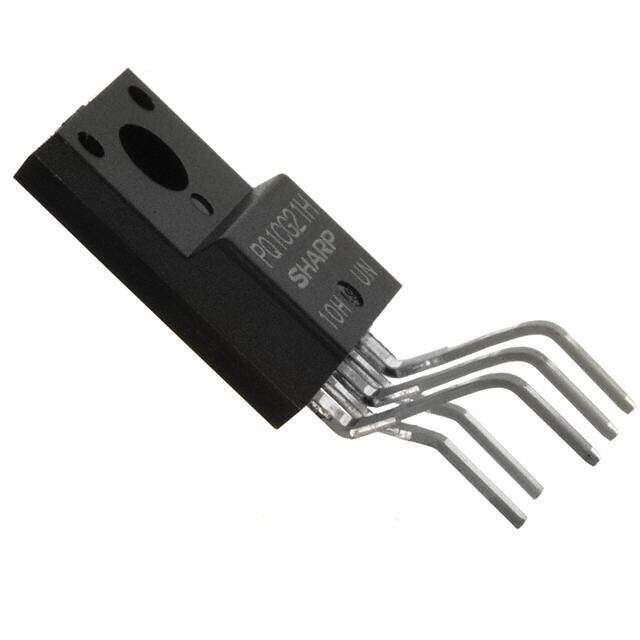

PQ1CG21H2FZH
RoHS
/
Package TO-220-5
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tube Tin/Copper (Sn/Cu) Obsolete SWITCHING REGULATOR DC to DC switching regulator 35V 1.5A 100kHz 80C
PDF
/
Buying Options
Total Price: USD $3.22
Unit Price: USD $3.2224
≥1 USD $3.2224
≥10 USD $2.64385
≥100 USD $2.5612
≥500 USD $2.47855
≥1000 USD $2.3959
Inventory: 1115
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Switching Frequency 100kHz
Switcher Configuration BUCK-BOOST
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 35V
Input Voltage (Min) 8V
Output Current 1.5A
Analog IC - Other Type SWITCHING REGULATOR
Temperature Grade COMMERCIAL EXTENDED
Input Voltage-Nom 12V
Output Type Adjustable
Output Voltage -30V
Number of Outputs 1
JESD-30 Code R-PZFM-T5
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position ZIG-ZAG
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Terminal Finish Tin/Copper (Sn/Cu)
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e2
Published 2001
Packaging Tube
Physical
Package / Case TO-220-5
Mount Through Hole
