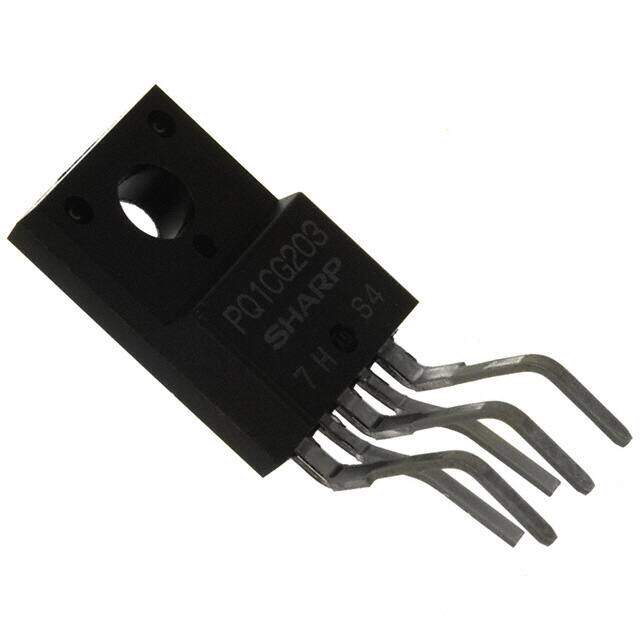

PQ1CG2032FZ
RoHS
/
Package TO-220-5
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tube Tin/Lead (Sn/Pb) Obsolete SWITCHING REGULATOR DC to DC switching regulator 35V 3A 70kHz 80C
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.07445
≥1 USD $1.07445
≥10 USD $0.8816
≥100 USD $0.85405
≥500 USD $0.8265
≥1000 USD $0.79895
Inventory: 7283
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Technical
Switching Frequency 70kHz
Switcher Configuration BUCK-BOOST
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 35V
Input Voltage (Min) 8V
Output Current 3A
Analog IC - Other Type SWITCHING REGULATOR
Temperature Grade COMMERCIAL EXTENDED
Input Voltage-Nom 12V
Output Type Adjustable
Output Voltage -30V
Number of Outputs 1
JESD-30 Code R-PZFM-T5
Number of Functions 1
Peak Reflow Temperature (Cel) 240
Terminal Position ZIG-ZAG
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Published 2001
Packaging Tube
Physical
Package / Case TO-220-5
Mount Through Hole
