NR885K
RoHS
RoHS compliant

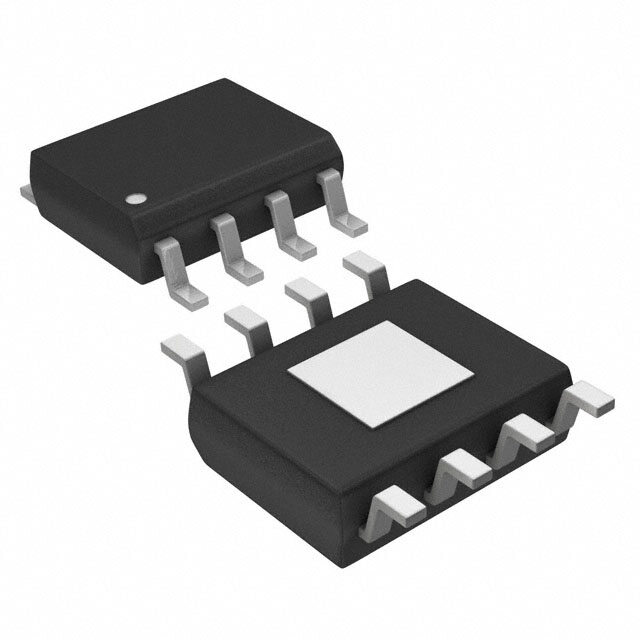

RoHS compliantPackage 8-SOIC (0.173, 4.40mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) Active Step-Down SWITCHING REGULATOR DC to DC switching regulator 12V 4.4mm 3A 350kHz
PDF
/
Buying Options
Total Price: USD $6.53
Unit Price: USD $6.5341
≥1 USD $6.5341
≥10 USD $5.36085
≥100 USD $5.19365
≥500 USD $5.02645
≥1000 USD $4.8583
Inventory: 1185
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SOIC (0.173, 4.40mm Width) Exposed Pad
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2012
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDSO-G8
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 18V
Output Voltage 3.3V
Output Type Adjustable
Voltage - Input (Min) 4.5V
Input Voltage-Nom 12V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 3A
Max Output Voltage 14V
Voltage - Output (Min/Fixed) 0.8V
Topology Buck
Control Mode CURRENT-MODE
Frequency - Switching 350kHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 800mV
Dimensions
Length 5.2mm
Width 4.4mm
Compliance
RoHS Status RoHS Compliant
