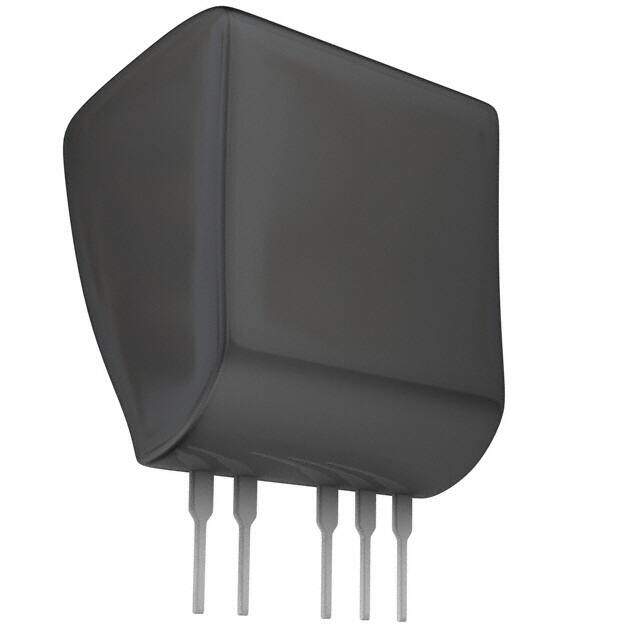

BP5029
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP, 5 Leads
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
BP5029 Bulk TIN COPPER Obsolete DC to DC switching regulator 12V 11.5mm 300mA -10C~80C TA
PDF
/
Inventory: 8991
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 11.5mm
Length 18.3mm
Height 19.3mm
Technical
Synchronous Rectifier No
Topology Buck
Current - Output 300mA
Output Configuration Positive
Analog IC - Other Type DC-DC REGULATED POWER SUPPLY MODULE
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 8V
Output Type Fixed
Output Voltage 5V
Voltage - Input (Max) 16V
Number of Outputs 1
Function Step-Down
JESD-30 Code R-XSMA-T5
Base Part Number BP5029
Time@Peak Reflow Temperature-Max (s) 10
Terminal Pitch 2.54mm
Peak Reflow Temperature (Cel) 260
Terminal Position SINGLE
Technology HYBRID
Subcategory Other Analog ICs
Terminal Finish TIN COPPER
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e2
Published 2006
Packaging Bulk
Operating Temperature -10°C~80°C TA
Physical
Package / Case 6-SIP, 5 Leads
Mounting Type Through Hole
Mount Through Hole
