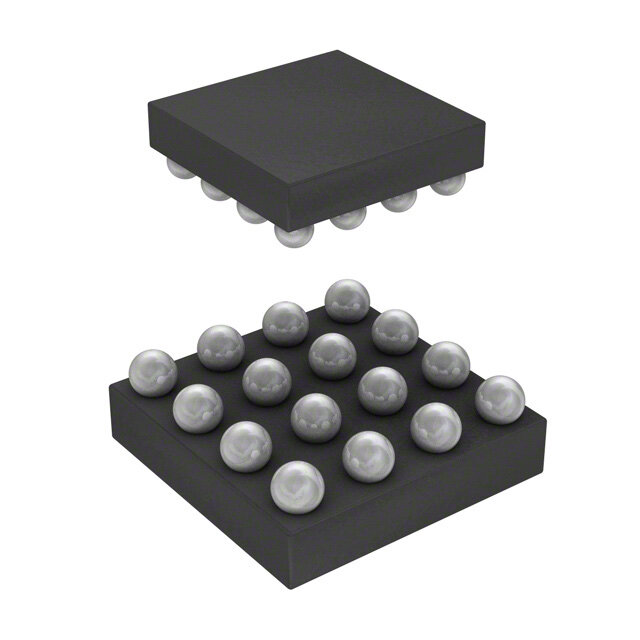

BD9B331GWZ-E2
RoHS
RoHS compliant
RoHS compliantPackage 16-XFBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
ALSO OPERATES IN PFM CONTROL TECHNIQUE OUTPUT VOLTAGE RANGE FROM 0.6V TO 4.4V Tape & Reel (TR) Active Step-Down DC to DC switching regulator 5V 0.4mm 3A 1.3MHz
PDF
/
Buying Options
Total Price: USD $1.65
Unit Price: USD $1.6456
≥1 USD $1.6456
≥10 USD $1.47664
≥100 USD $1.393216
≥500 USD $1.187032
≥1000 USD $1.114573
≥3000 USD $0.975234
Inventory: 1076
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.33mm
Technical
Voltage - Output (Max) 4.4V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1.3MHz
Topology Buck
Voltage - Output (Min/Fixed) 0.6V
Current - Output 3A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 5V
Voltage - Input (Min) 2.7V
Output Type Adjustable
Voltage - Input (Max) 5.5V
Number of Outputs 1
Function Step-Down
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.4mm
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Additional Feature ALSO OPERATES IN PFM CONTROL TECHNIQUE, OUTPUT VOLTAGE RANGE FROM 0.6 V TO 4.4 V
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 16-XFBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
