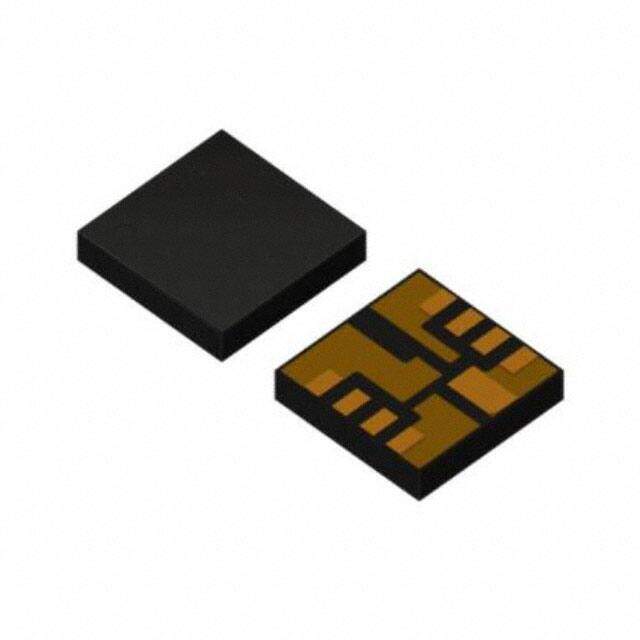

BD9B305QUZ-E2
RoHS
RoHS compliant
RoHS compliantPackage 8-XFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) Active Step-Down SWITCHING REGULATOR DC to DC switching regulator 5V 2mm 3A 1MHz
PDF
/
Buying Options
Total Price: USD $3.07
Unit Price: USD $3.0742
≥1 USD $3.0742
≥10 USD $2.5232
≥100 USD $2.44435
≥500 USD $2.3655
≥1000 USD $2.28665
Inventory: 93
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 2mm
Length 2mm
Height Seated (Max) 0.4mm
Technical
Voltage - Output (Max) 4.4V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1MHz
Topology Buck
Voltage - Output (Min/Fixed) 0.6V
Current - Output 3A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 5V
Voltage - Input (Min) 2.7V
Output Type Adjustable
Voltage - Input (Max) 5.5V
Number of Outputs 1
Function Step-Down
JESD-30 Code S-PDSO-N8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 8-XFDFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
