BD9122GUL-E2
RoHS
RoHS compliant

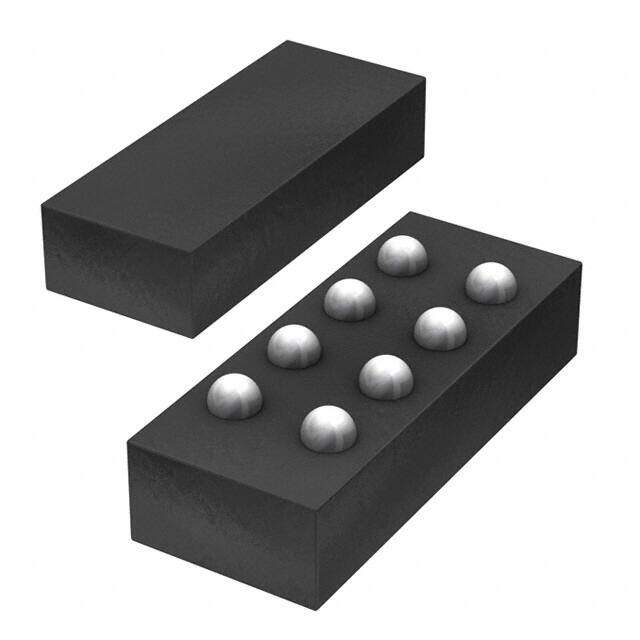

RoHS compliantPackage 8-UFBGA, CSPBGA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
BD912* Tape & Reel (TR) Active Step-Down DC to DC switching regulator 3.3V 2.5mm 300mA 1MHz
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.7195
≥1 USD $1.7195
≥10 USD $1.41075
≥100 USD $1.36705
≥500 USD $1.3224
≥1000 USD $1.2787
Inventory: 1199
Minimum: 1
-
+
Technical Details
Dimensions
Length 2.5mm
Height Seated (Max) 0.55mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Technical
Min Output Voltage 1V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 1V
Max Output Voltage 2V
Current - Output 300mA
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.3V
Voltage - Input (Min) 2.5V
Operating Supply Voltage 5.5V
Max Output Current 500mA
Output Type Adjustable
Output Voltage 2V
Qualification Status Not Qualified
Number of Outputs 1
Function Step-Down
Base Part Number BD912*
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Subcategory Switching Regulator or Controllers
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C TA
Physical
Number of Pins 8
Package / Case 8-UFBGA, CSPBGA
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Copper, Silver, Tin
Supply Chain
Factory Lead Time 10 Weeks
