BD8317GWL-E2
RoHS
RoHS compliant

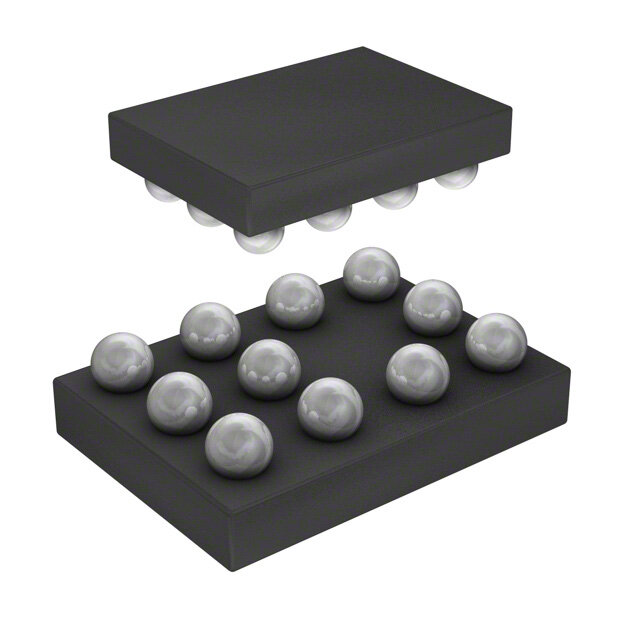

RoHS compliantPackage 11-UFBGA, WLCSP
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Cut Tape (CT) Active Step-Up SWITCHING REGULATOR DC to DC switching regulator -9V 1A Switch 800kHz -35C~85C TA
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.716
≥1 USD $1.716
≥10 USD $1.54
≥100 USD $1.453056
≥500 USD $1.23816
≥1000 USD $1.16255
≥3000 USD $1.017227
Inventory: 1261
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output (Max) 18V -9V
Min Output Voltage -1V
Synchronous Rectifier Yes
Frequency - Switching 800kHz
Topology Boost
Voltage - Output (Min/Fixed) 5.5V -1V
Max Output Voltage -9V
Current - Output 1A Switch
Output Configuration Positive and Negative (Dual Rail)
Analog IC - Other Type SWITCHING REGULATOR
Voltage - Input (Min) 2.5V
Output Type Adjustable
Voltage - Input (Max) 5.5V
Number of Outputs 2
Function Step-Up
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2012
Packaging Cut Tape (CT)
Operating Temperature -35°C~85°C TA
Physical
Package / Case 11-UFBGA, WLCSP
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
