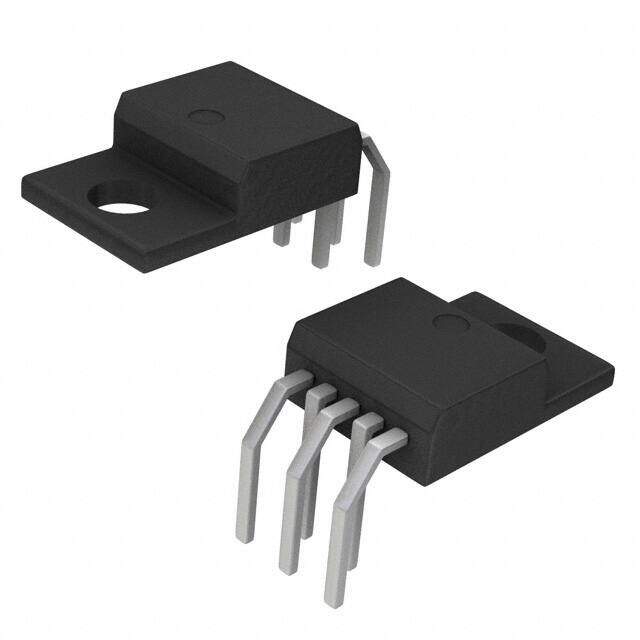

MC34167THG
RoHS
RoHS compliant
RoHS compliantPackage TO-220-5 Formed Leads
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tube MATTE TIN Obsolete Step-Up Step-Down DC to DC switching regulator 12V 5.5A Switch 72kHz 0C~70C TA
PDF
/
Buying Options
Total Price: USD $1.83
Unit Price: USD $1.8297
≥1 USD $1.8297
≥10 USD $1.501
≥100 USD $1.45445
≥500 USD $1.40695
≥1000 USD $1.3604
Inventory: 1220
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output (Max) 40V Switch
Switcher Configuration BUCK-BOOST
Synchronous Rectifier No
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 72kHz
Control Mode VOLTAGE-MODE
Topology Buck, Boost
Voltage - Output (Min/Fixed) 5.05V
Current - Output 5.5A Switch
Output Configuration Positive or Negative
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 7.5V
Output Type Adjustable
Voltage - Input (Max) 40V
Qualification Status COMMERCIAL
Number of Outputs 1
Function Step-Up, Step-Down
JESD-30 Code R-PZFM-T5
Time@Peak Reflow Temperature-Max (s) 40
Peak Reflow Temperature (Cel) 260
Terminal Position ZIG-ZAG
Technology BIPOLAR
Terminal Finish MATTE TIN
Number of Terminations 5
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Packaging Tube
Operating Temperature 0°C~70°C TA
Physical
Surface Mount NO
Package / Case TO-220-5 Formed Leads
Mounting Type Through Hole
