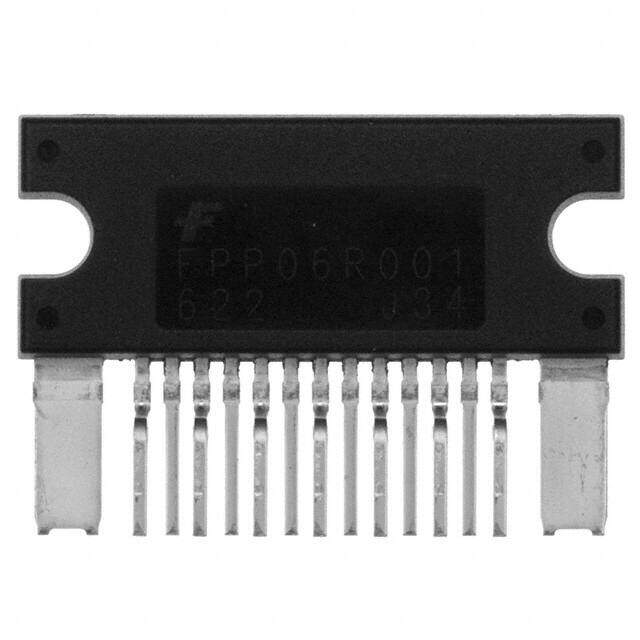

FPP06R001
RoHS
RoHS compliant
RoHS compliantPackage EPM15
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Bulk Obsolete Step-Up/Step-Down SWITCHING REGULATOR DC to DC switching regulator 15V 40A 20kHz -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $3.47
Unit Price: USD $3.4672
≥1 USD $3.4672
Inventory: 2064
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Package / Case EPM15
Surface Mount NO
Technical
Operating Temperature -40°C~125°C TJ
Packaging Bulk
Series Power-SPM?
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 15
Terminal Position SINGLE
Reach Compliance Code unknown
Function Step-Up/Step-Down
Number of Outputs 1
Voltage - Input (Max) 20V
Output Voltage 15V
Output Type Programmable
Voltage - Input (Min) 5V
Input Voltage-Nom 15V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive, Isolation Capable
Current - Output 40A
Topology Forward Converter, Full Bridge
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Voltage - Output (Max) 12V
Switching Frequency-Max 20kHz
Compliance
RoHS Status ROHS3 Compliant
