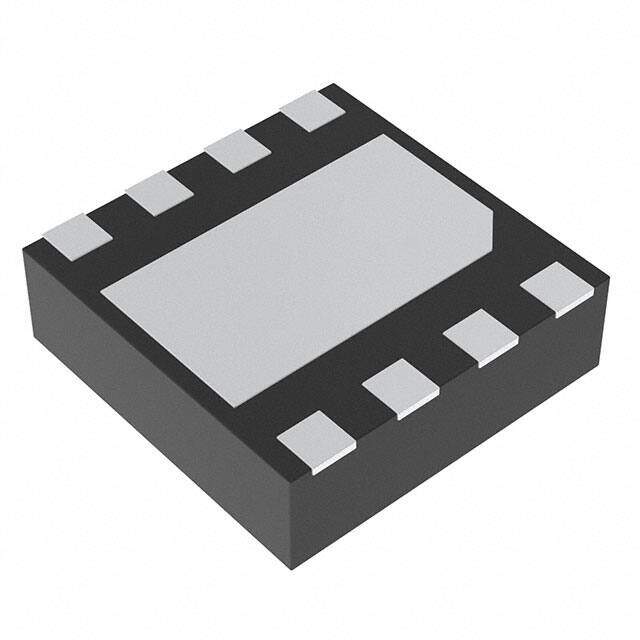

RP402K331B-TR
RoHS
RoHS compliant
RoHS compliantPackage 8-UFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
ALSO REQUIRE FM CONTROL TECHNIQUE Tape & Reel (TR) Gold (Au) Active DC to DC switching regulator 1.5V 2mm 800mA 1.2MHz
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.940302
≥1 USD $0.940302
≥10 USD $0.887077
≥100 USD $0.836865
≥500 USD $0.789497
≥1000 USD $0.744804
Inventory: 1179
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Surface Mount
Package / Case 8-UFDFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series RP402x
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Gold (Au)
Additional Feature ALSO REQUIRE FM CONTROL TECHNIQUE
Technology CMOS
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-PDSO-N8
Function Step-Up
Number of Outputs 1
Voltage - Input (Max) 4.8V
Output Voltage 3.3V
Output Type Fixed
Voltage - Input (Min) 0.6V
Input Voltage-Nom 1.5V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 800mA
Voltage - Output (Min/Fixed) 3.3V
Topology Boost
Control Mode CURRENT-MODE
Frequency - Switching 1.2MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Dimensions
Height Seated (Max) 0.6mm
Length 2mm
Width 2mm
Compliance
RoHS Status RoHS Compliant
