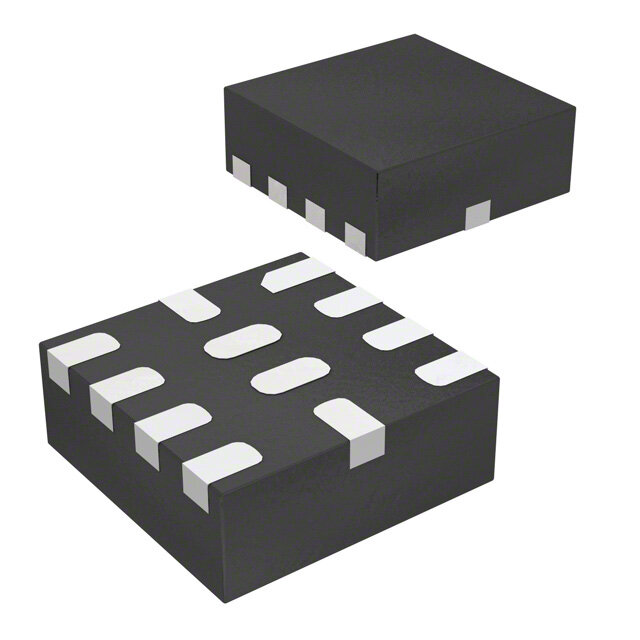

RT8086BGQUF
RoHS
RoHS compliant
RoHS compliantPackage 12-PowerUFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) Active Step-Down SWITCHING REGULATOR DC to DC switching regulator 3.3V 2mm 3.5A 1.2MHz
PDF
/
Buying Options
Total Price: USD $1.02
Unit Price: USD $1.0208
≥1 USD $1.0208
≥10 USD $0.9152
≥100 USD $0.868384
≥500 USD $0.713416
≥1000 USD $0.666899
≥3000 USD $0.589371
Inventory: 1126
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 12-PowerUFQFN
Number of Pins 12
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2013
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 12
Terminal Position BOTTOM
Terminal Form NO LEAD
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 5.5V
Output Voltage 3.3V
Output Type Adjustable
Voltage - Input (Min) 2.8V
Input Voltage-Nom 3.3V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 3.5A
Max Output Voltage 3.3V
Voltage - Output (Min/Fixed) 0.6V
Topology Buck
Control Mode CURRENT-MODE
Frequency - Switching 1.2MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 600mV
Dimensions
Height Seated (Max) 0.6mm
Length 2mm
Width 2mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
