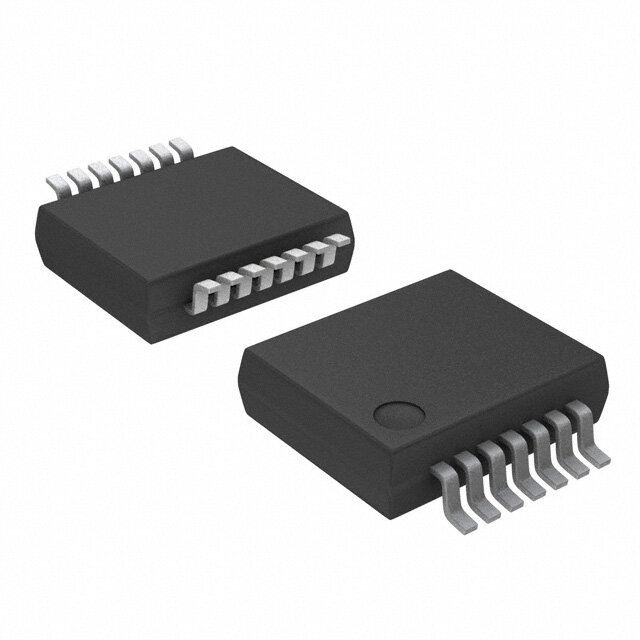

RT7232GCP image
Favorite
RT7232GCP image
Favorite

RT7232GCP

Richtek USA Inc.
RoHS
RoHS RoHS compliant
Package 14-TSSOP (0.173, 4.40mm Width) Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description Tape & Reel (TR) Active Step-Down ACOT? DC to DC switching regulator 18V 4A 650kHz -40C~85C TA
PDF
/
Buying Options
Total Price: USD $5.1
Unit Price: USD $5.10435
≥1 USD $5.10435
≥10 USD $4.18855
≥100 USD $4.05745
≥500 USD $3.92635
≥1000 USD $3.79525
Inventory: 1123
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Technical

Voltage - Output (Max) 8V
Min Output Voltage 765mV
Synchronous Rectifier Yes
Max Input Voltage 18V
Frequency - Switching 650kHz
Min Input Voltage 4.5V
Topology Buck
Voltage - Output (Min/Fixed) 0.765V
Max Output Voltage 8V
Current - Output 4A
Output Configuration Positive
Voltage - Input (Min) 4.5V
Output Type Adjustable
Voltage - Input (Max) 18V
Number of Outputs 1
Function Step-Down
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series ACOT?
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA

Physical

Supplier Device Package 14-TSSOP-EP
Number of Pins 14
Package / Case 14-TSSOP (0.173, 4.40mm Width) Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
