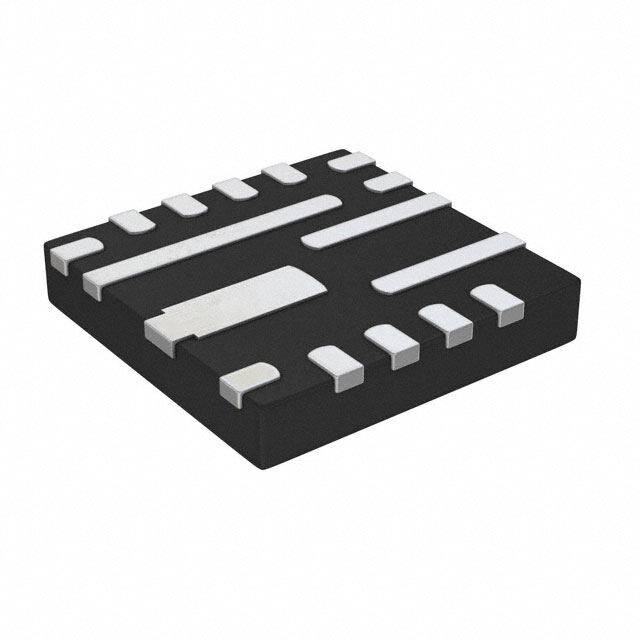

RT6242BHGQUF
RoHS
RoHS compliant
RoHS compliantPackage 16-UFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Cut Tape (CT) Active Step-Down ACOT? DC to DC switching regulator 18V 12A 300kHz~700kHz -40C~85C TA
PDF
/
Buying Options
Total Price: USD $3.08
Unit Price: USD $3.08
≥1 USD $3.08
≥10 USD $2.76936
≥100 USD $2.617824
≥500 USD $2.268728
≥1000 USD $2.152374
≥3000 USD $1.931301
Inventory: 1141
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-UFQFN
Number of Pins 16
Supplier Device Package 16-UQFN (3x3)
Technical
Operating Temperature -40°C~85°C TA
Packaging Cut Tape (CT)
Published 2016
Series ACOT?
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 18V
Output Voltage 8V
Output Type Adjustable
Voltage - Input (Min) 4.5V
Output Configuration Positive
Current - Output 12A
Max Output Voltage 8V
Voltage - Output (Min/Fixed) 0.7V
Topology Buck
Min Input Voltage 4.5V
Frequency - Switching 300kHz~700kHz
Max Input Voltage 18V
Synchronous Rectifier Yes
Min Output Voltage 700mV
Voltage - Output (Max) 8V
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
