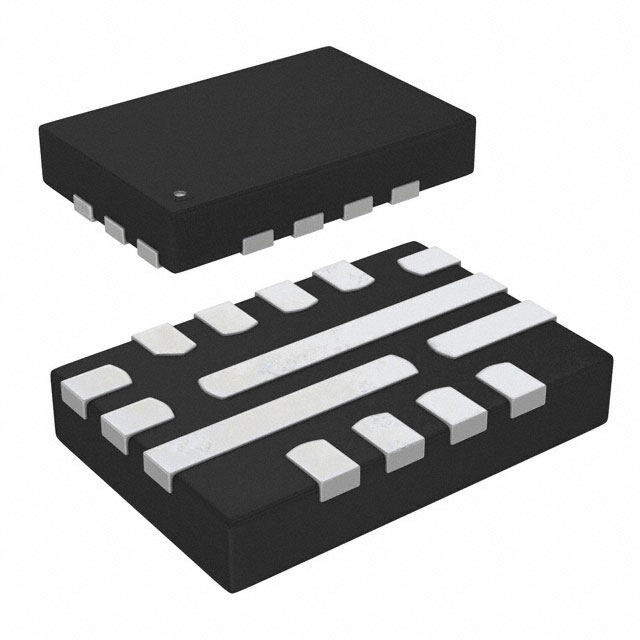

RT6239BHGQUF
RoHS
RoHS compliant
RoHS compliantPackage 14-UFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) Active Step-Down ACOT? DC to DC switching regulator 18V 9A 500kHz -40C~85C TA
PDF
/
Inventory: 1127
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output (Max) 8V
Min Output Voltage 700mV
Synchronous Rectifier Yes
Max Input Voltage 18V
Frequency - Switching 500kHz
Min Input Voltage 4.5V
Topology Buck
Voltage - Output (Min/Fixed) 0.7V
Max Output Voltage 8V
Current - Output 9A
Output Configuration Positive
Voltage - Input (Min) 4.5V
Output Type Adjustable
Voltage - Input (Max) 18V
Number of Outputs 1
Function Step-Down
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series ACOT?
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Supplier Device Package 14-UQFN (2x3)
Number of Pins 14
Package / Case 14-UFQFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
