RT6215EHGJ8F
RoHS
RoHS compliant

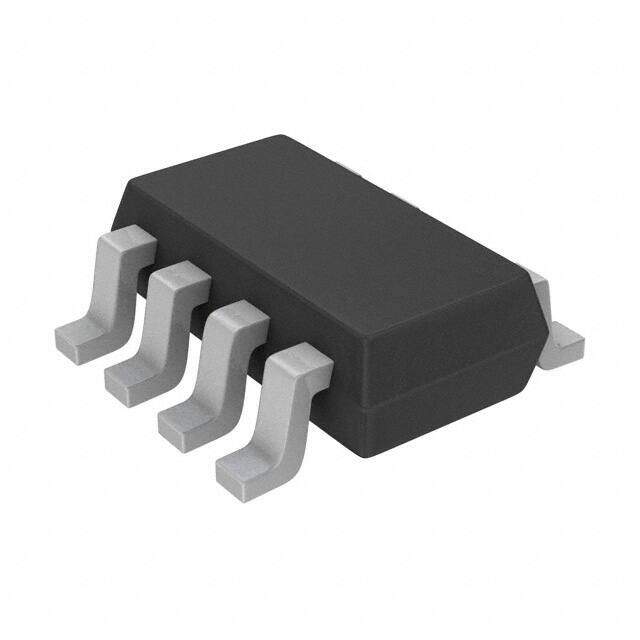

RoHS compliantPackage SOT-23-8 Thin, TSOT-23-8
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) Active Step-Down SWITCHING REGULATOR DC to DC switching regulator 12V 2.8955mm 2A 500kHz
PDF
/
Buying Options
Total Price: USD $0.87
Unit Price: USD $0.8712
≥1 USD $0.8712
≥10 USD $0.78144
≥100 USD $0.741664
≥500 USD $0.609224
≥1000 USD $0.569466
≥3000 USD $0.503237
Inventory: 1148
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 2.8955mm
Technical
Min Output Voltage 791mV
Synchronous Rectifier Yes
Frequency - Switching 500kHz
Topology Buck
Voltage - Output (Min/Fixed) 0.791V
Max Output Voltage 5V
Current - Output 2A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 4.5V
Output Type Adjustable
Output Voltage 5V
Voltage - Input (Max) 24V
Number of Outputs 1
Function Step-Down
JESD-30 Code R-PDSO-G8
Terminal Pitch 0.65mm
Terminal Form GULL WING
Terminal Position DUAL
Number of Terminations 8
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series ACOT?
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case SOT-23-8 Thin, TSOT-23-8
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
