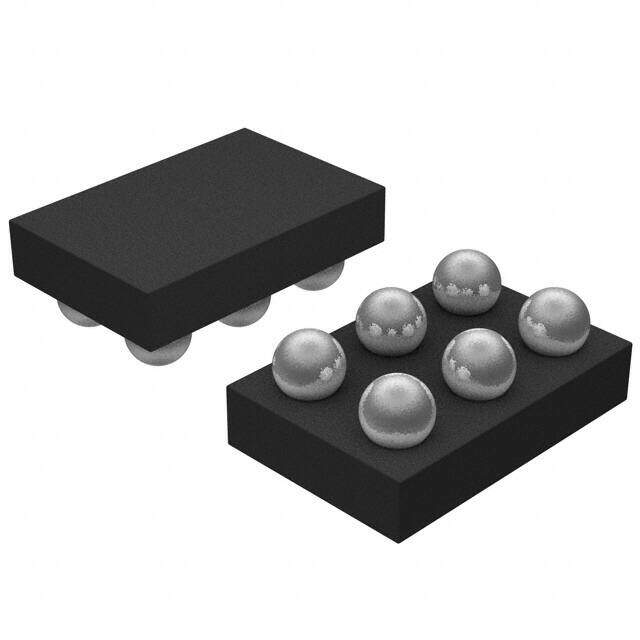

ISL9113EI9Z-T
RoHS
RoHS compliant
RoHS compliantPackage 6-XFBGA, WLCSP
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
ISL9113 Tape & Reel (TR) Matte Tin (Sn) Active DC to DC switching regulator 3V 0.8mm 1.1A Switch 1.8MHz
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.07445
≥1 USD $1.07445
≥10 USD $0.8816
≥100 USD $0.85405
≥500 USD $0.8265
≥1000 USD $0.79895
Inventory: 1145
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 0.8mm
Height Seated (Max) 0.55mm
Technical
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 1.8MHz
Control Mode CURRENT-MODE
Topology Boost
Voltage - Output (Min/Fixed) 5.1V
Current - Output 1.1A Switch
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3V
Voltage - Input (Min) 0.8V
Output Type Fixed
Output Voltage 5.1V
Voltage - Input (Max) 4.7V
Number of Outputs 1
Function Step-Up
JESD-30 Code R-PBGA-B6
Base Part Number ISL9113
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.4mm
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -20°C~85°C TA
Physical
Surface Mount YES
Package / Case 6-XFBGA, WLCSP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
