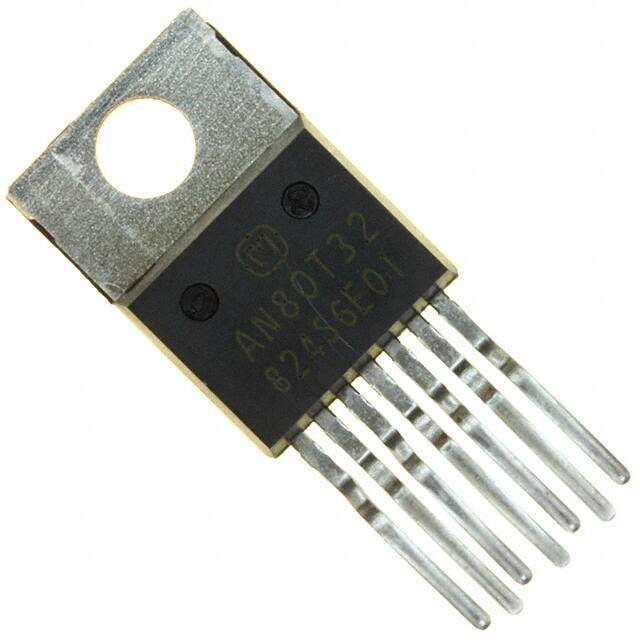

AN80T32
RoHS
/
Package TO-220-7
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
IC REG BCK 5V/5V/5.6V TRPL TO220
PDF
/
Inventory: 4999
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Min Output Voltage 5.6V
Synchronous Rectifier No
Topology Buck
Voltage - Output (Min/Fixed) 5V 5V 5.6V
Output Configuration Positive
Analog IC - Other Type ANALOG CIRCUIT
Supply Voltage-Min (Vsup) 8.5V
Supply Voltage-Max (Vsup) 15V
Voltage - Input (Min) 8.5V
Output Type Fixed
Voltage - Input (Max) 15V
Number of Outputs 3
Function Step-Down
JESD-30 Code R-PZFM-T7
Base Part Number AN80T32
Terminal Position ZIG-ZAG
Technology BIPOLAR
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2007
Packaging Tube
Operating Temperature -30°C~85°C TA
Physical
Package / Case TO-220-7
Mounting Type Through Hole
Mount Through Hole
