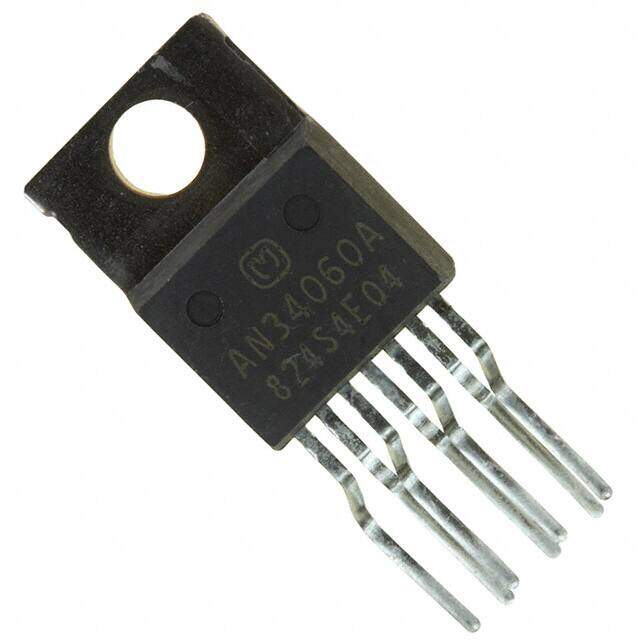

AN34060A
RoHS
/
Package TO-220-7
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
IC REG BUCK 2.5V/3.3V/5V TO220
PDF
/
Inventory: 2715
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-220-7
Technical
Operating Temperature -30°C~85°C TA
Packaging Tube
Published 2007
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
Technology BIPOLAR
Terminal Position ZIG-ZAG
Base Part Number AN34060A
JESD-30 Code R-PZFM-T7
Function Step-Down
Number of Outputs 3
Voltage - Input (Max) 14V
Output Type Fixed
Voltage - Input (Min) 6V
Supply Voltage-Max (Vsup) 14V
Supply Voltage-Min (Vsup) 6V
Analog IC - Other Type ANALOG CIRCUIT
Output Configuration Positive
Voltage - Output (Min/Fixed) 2.5V 3.3V 5V
Topology Buck
Synchronous Rectifier No
Min Output Voltage 5V
Compliance
RoHS Status RoHS Compliant
