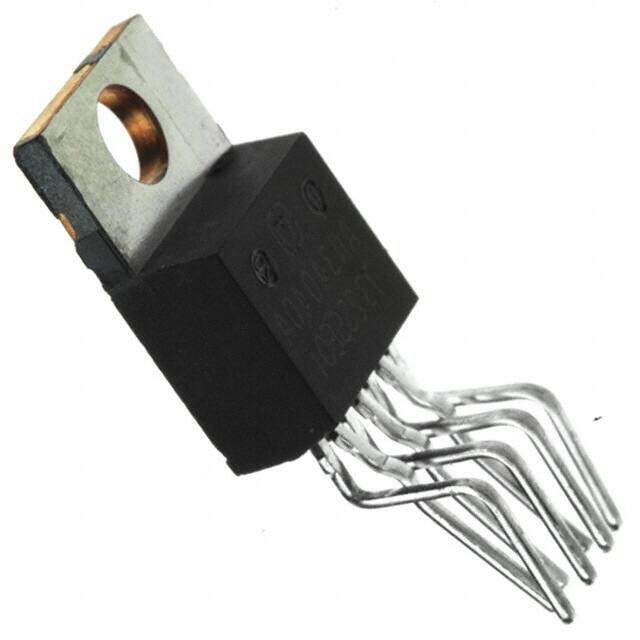

AN34040A image
Favorite
RoHS
/
Package TO-220-7
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BCK 3.3V/5V/9V TRPL TO220
PDF
/
Inventory: 5775
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Min Output Voltage 9V
Synchronous Rectifier No
Topology Buck
Voltage - Output (Min/Fixed) 3.3V 5V 9V
Output Configuration Positive
Analog IC - Other Type ANALOG CIRCUIT
Supply Voltage-Min (Vsup) 10V
Supply Voltage-Max (Vsup) 14V
Voltage - Input (Min) 5.5V
Output Type Fixed
Voltage - Input (Max) 14V
Number of Outputs 3
Function Step-Down
JESD-30 Code R-PZFM-T7
Base Part Number AN34040A
Terminal Position ZIG-ZAG
Technology BIPOLAR
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2007
Packaging Tube
Operating Temperature -30°C~85°C TA

Physical

Package / Case TO-220-7
Mounting Type Through Hole
Mount Through Hole
