AN30180A-PR
RoHS
RoHS compliant
RoHS compliantPackage 9-VFBGA, WLCSP
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description

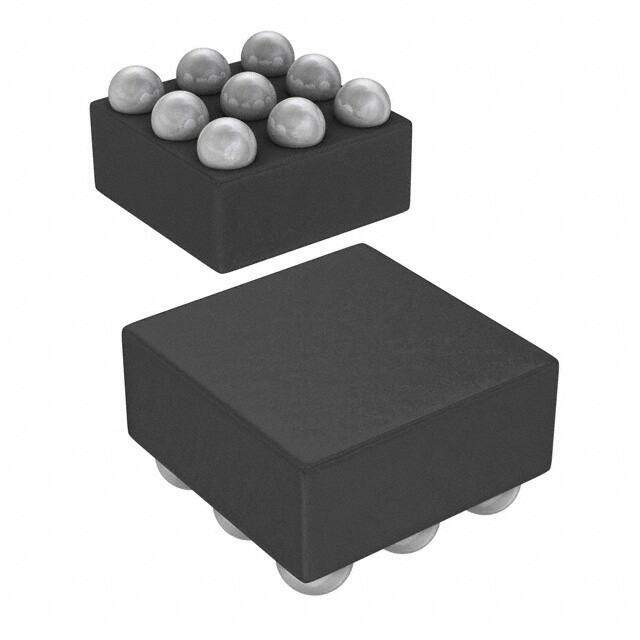

AN30180 Cut Tape (CT) Active Step-Down DC to DC switching regulator 2.8V 1.46mm 1.2A 148mW
PDF
/
Buying Options
Total Price: USD $1.53
Unit Price: USD $1.52665
≥1 USD $1.52665
≥10 USD $1.2521
≥100 USD $1.21315
≥500 USD $1.1742
≥1000 USD $1.13525
Inventory: 1174
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 9-VFBGA, WLCSP
Number of Pins 9
Technical
Packaging Cut Tape (CT)
Published 2012
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 9
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Subcategory Switching Regulator or Controllers
Max Power Dissipation 148mW
Terminal Position BOTTOM
Terminal Form BALL
Terminal Pitch 0.5mm
Reach Compliance Code unknown
Base Part Number AN30180
Function Step-Down
Number of Outputs 1
Qualification Status Not Qualified
Voltage - Input (Max) 5.5V
Output Voltage 2.8V
Output Type Programmable
Max Output Current 1.2A
Voltage - Input (Min) 2.5V
Temperature Grade OTHER
Nominal Supply Current 1.8A
Output Configuration Positive
Max Output Voltage 2.8V
Voltage - Output (Min/Fixed) 1.2V 1.35V 1.85V 3.3V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 3MHz
Synchronous Rectifier Yes
Min Output Voltage 3.3V
Dimensions
Height 625μm
Length 1.46mm
Width 1.46mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
