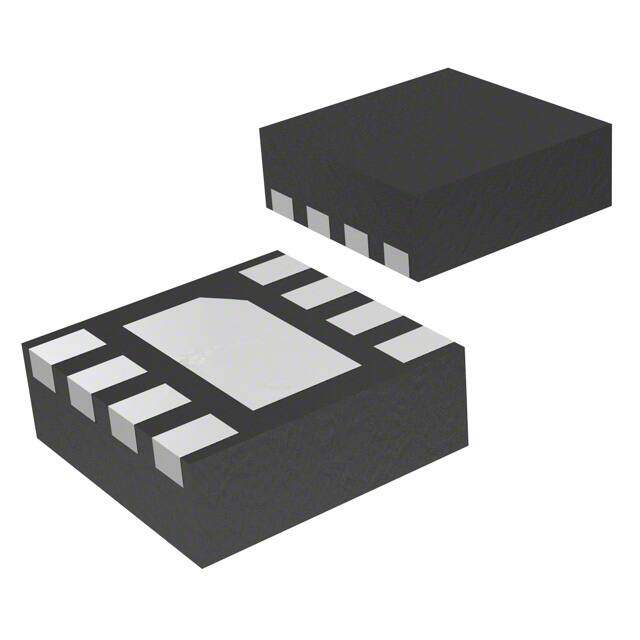

NCP6334BMTAATBG image
Favorite
NCP6334BMTAATBG image
Favorite

NCP6334BMTAATBG

ON Semiconductor
RoHS
RoHS RoHS compliant
Package 8-WFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description NCP6334 Tape & Reel (TR) ACTIVE NOT REC (Last Updated: 2days ago) Active DC to DC switching regulator 3.6V 2mm 2A 3MHz
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.25843
≥1 USD $1.25843
≥10 USD $1.1872
≥100 USD $1.12
≥500 USD $1.0566
≥1000 USD $0.9968
≥3000 USD $0.94037
Inventory: 3874
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks
Lifecycle Status ACTIVE, NOT REC (Last Updated: 2 days ago)

Physical

Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-WFDFN Exposed Pad
Number of Pins 8

Technical

Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2012
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Subcategory Switching Regulator or Controllers
Terminal Position DUAL
Terminal Pitch 0.5mm
Base Part Number NCP6334
Function Step-Down
Number of Outputs 1
Efficiency 96 %
Output Voltage 5.5V
Output Type Adjustable
Max Output Current 2A
Voltage - Input (Min) 2.3V
Input Voltage-Nom 3.6V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Max Output Voltage 5.5V
Voltage - Output (Min/Fixed) 0.6V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 3MHz
Halogen Free Halogen Free
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 600mV
Max Duty Cycle 100 %

Dimensions

Height 750μm
Length 2mm
Width 2mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
