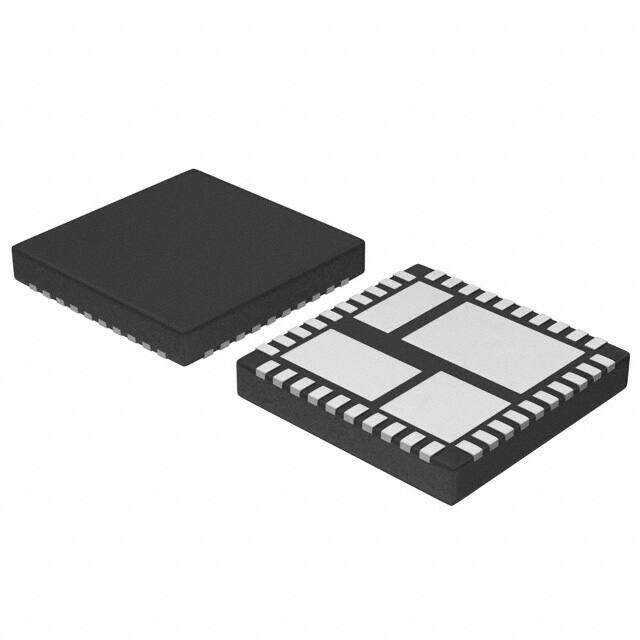

NCP3102CMNTXG
RoHS
/
Package 40-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
NCP3102 Tape & Reel (TR) Tin (Sn) OBSOLETE (Last Updated: 4days ago) DC to DC switching regulator 12V 6mm 10A 275kHz
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5377
≥1 USD $0.5377
≥10 USD $0.4408
≥100 USD $0.4275
≥500 USD $0.41325
≥1000 USD $0.39995
Inventory: 220
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 4 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 40-VFQFN Exposed Pad
Number of Pins 40
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Published 2011
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 40
ECCN Code EAR99
Terminal Finish Tin (Sn)
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number NCP3102
Function Step-Down
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 90 %
Voltage - Input (Max) 13.2V
Output Voltage 800mV
Output Type Adjustable
Max Output Current 10A
Voltage - Input (Min) 4.5V
Input Voltage-Nom 12V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Max Output Voltage 1.4V
Voltage - Output (Min/Fixed) 0.8V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 275kHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 800mV
Voltage - Output (Max) 11.22V
Dimensions
Height 950μm
Length 6mm
Width 6mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
