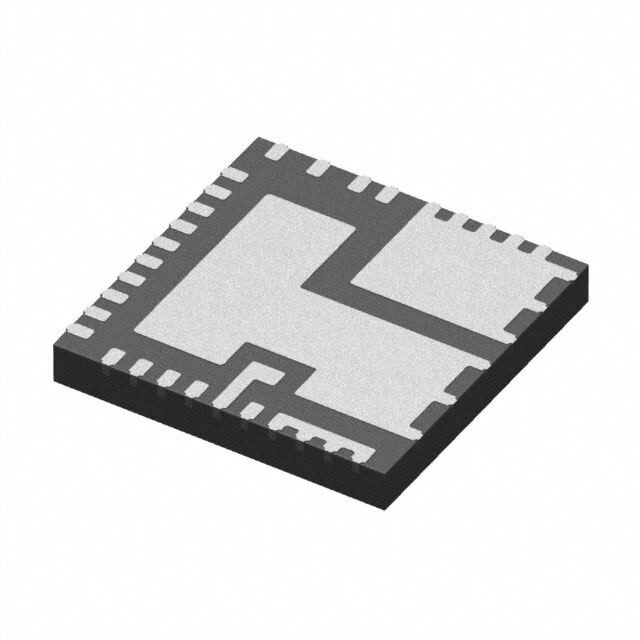

FAN65008B
RoHS
/
Package 35-PowerWFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
ALSO REQUIRE PFM CONTROL TECHNIQUE Tape & Reel (TR) Tin (Sn) ACTIVE (Last Updated: 6days ago) DC to DC switching regulator 65V 6mm 8A 1MHz
PDF
/
Buying Options
Total Price: USD $5.14
Unit Price: USD $5.1392
≥1 USD $5.1392
≥10 USD $4.6156
≥100 USD $4.36304
≥500 USD $3.587496
≥1000 USD $3.21904
≥3000 USD $3.102686
Inventory: 1524
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 6mm
Length 6mm
Height Seated (Max) 0.8mm
Technical
Switching Frequency 1MHz
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 65V
Control Mode VOLTAGE-MODE
Input Voltage (Min) 4.5V
Output Current 8A
Analog IC - Other Type SWITCHING REGULATOR
Temperature Grade AUTOMOTIVE
Input Voltage-Nom 48V
Output Voltage 5V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 125°C
JESD-30 Code S-PQCC-N35
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position QUAD
Additional Feature ALSO REQUIRE PFM CONTROL TECHNIQUE
Terminal Finish Tin (Sn)
Number of Terminations 35
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
Package / Case 35-PowerWFQFN
Mounting Type Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 15 Weeks
