FAN53601AUC105X
RoHS
RoHS compliant

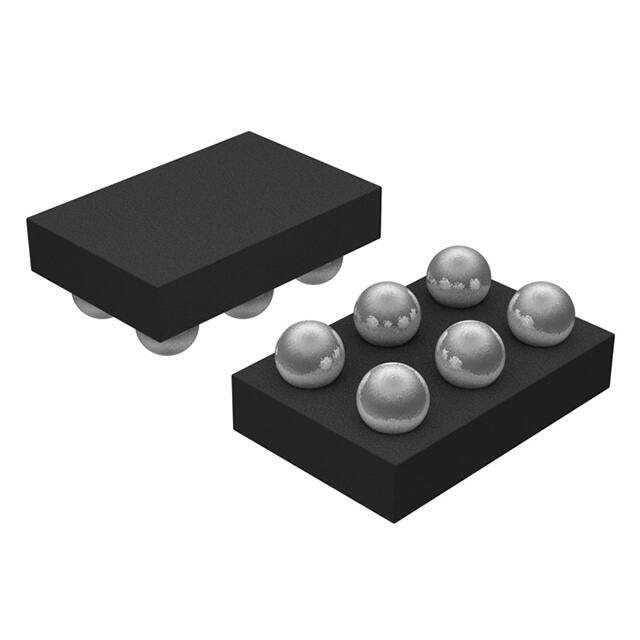

RoHS compliantPackage 6-UFBGA, WLCSP
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
ALSO REQUIRE PFM CONTROL TECHNIQUE Tape & Reel (TR) Tin/Silver/Copper (Sn/Ag/Cu) ACTIVE (Last Updated: 20hours ago) DC to DC switching regulator 3.6V 0.86mm 600mA 6MHz
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8096
≥1 USD $0.8096
≥10 USD $0.72072
≥100 USD $0.684288
≥500 USD $0.525536
≥1000 USD $0.464394
≥3000 USD $0.439965
Inventory: 1143
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 0.86mm
Height Seated (Max) 0.625mm
Technical
Min Output Voltage 1.05V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 6MHz
Control Mode VOLTAGE-MODE
Topology Buck
Voltage - Output (Min/Fixed) 1.05V
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.6V
Voltage - Input (Min) 2.3V
Max Output Current 600mA
Output Type Fixed
Output Voltage 1V
Voltage - Input (Max) 5.5V
Qualification Status Not Qualified
Number of Outputs 1
Function Step-Down
JESD-30 Code R-PBGA-B6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.4mm
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Subcategory Switching Regulator or Controllers
Additional Feature ALSO REQUIRE PFM CONTROL TECHNIQUE
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Weight 45mg
Package / Case 6-UFBGA, WLCSP
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 20 hours ago)
Factory Lead Time 4 Weeks
