FAN48685UC08X
RoHS
/

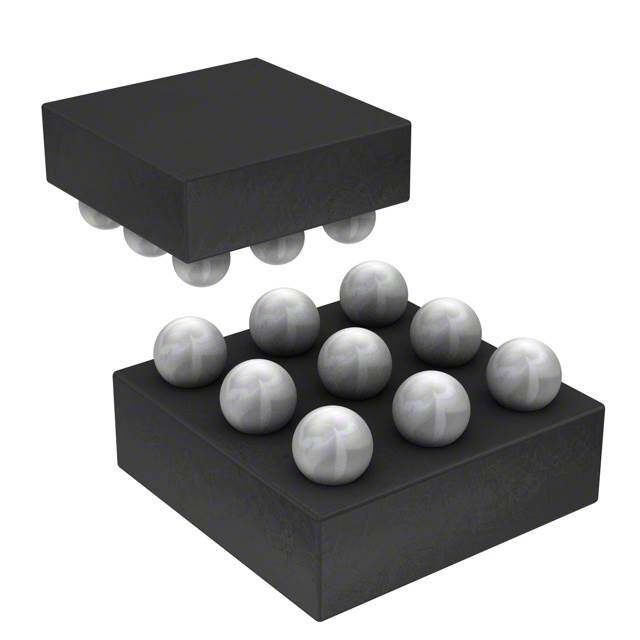

Package 9-UFBGA, WLCSP
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
OTHER NOMINAL REGULATED OUTPUT VOLTAGES ARE 5V AND 5.45V Tape & Reel (TR) Active Step-Up DC to DC switching regulator 3.8V 0.4mm 800mA 2.5MHz
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.704
≥1 USD $0.704
≥10 USD $0.61864
≥100 USD $0.581152
≥500 USD $0.440528
≥1000 USD $0.37488
≥3000 USD $0.356154
Inventory: 1115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mounting Type Surface Mount
Package / Case 9-UFBGA, WLCSP
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Series TinyBoost?
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Additional Feature OTHER NOMINAL REGULATED OUTPUT VOLTAGES ARE 5V AND 5.45V
Terminal Position BOTTOM
Terminal Form BALL
Terminal Pitch 0.4mm
Reach Compliance Code compliant
JESD-30 Code S-PBGA-B9
Function Step-Up
Number of Outputs 1
Voltage - Input (Max) 5.5V
Output Voltage 3.6V
Output Type Programmable
Voltage - Input (Min) 2.5V
Input Voltage-Nom 3.8V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 800mA
Voltage - Output (Min/Fixed) 3.6V 5V 5.45V
Topology Boost
Frequency - Switching 2.5MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
