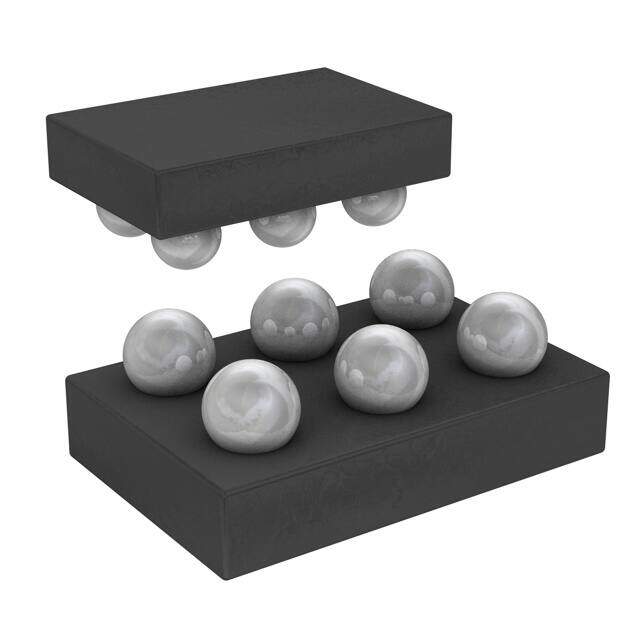

FAN4860UC33X
RoHS
/
Package 6-UFBGA, WLCSP
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
FAN4860 ALSO HAS THE CONTROL TECHNIQUE OF PFM Tape & Reel (TR) Tin/Silver/Copper (Sn/Ag/Cu) DC to DC switching regulator 2.7V 1.23mm 650mA Switch 3MHz
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.2552
≥1 USD $0.2552
Inventory: 1722
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status PRODUCT PREVIEW (Last Updated: 1 month ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-UFBGA, WLCSP
Number of Pins 6
Weight 45mg
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2016
Series TinyBoost?
JESD-609 Code e1
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature ALSO HAS THE CONTROL TECHNIQUE OF PFM
Subcategory Switching Regulator or Controllers
Terminal Position BOTTOM
Terminal Form BALL
Terminal Pitch 0.4mm
Base Part Number FAN4860
Function Step-Up
Number of Outputs 1
Efficiency 92 %
Output Voltage 3.3V
Output Type Fixed
Max Output Current 200mA
Operating Supply Voltage 3.2V
Voltage - Input (Min) 2.3V
Input Voltage-Nom 2.7V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 650mA Switch
Max Output Voltage 3.3V
Topology Boost
Control Mode CURRENT-MODE
Frequency - Switching 3MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 3.3V
Dimensions
Height 378μm
Length 880μm
Width 1.23mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
