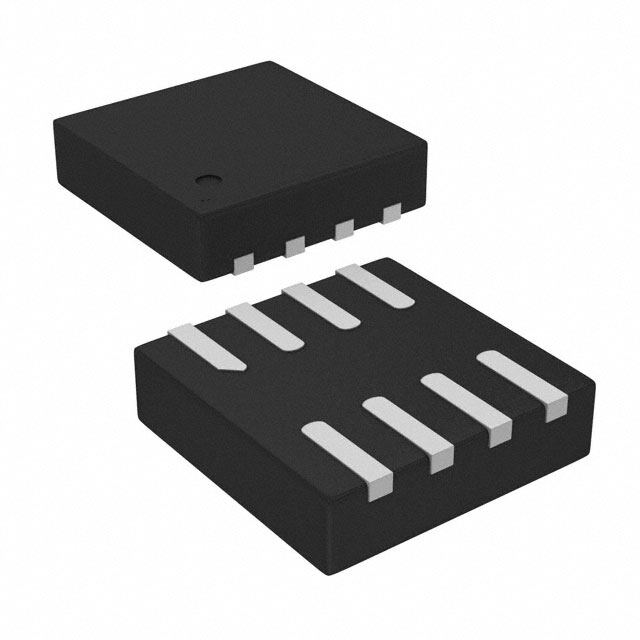

MP9943GQ-Z
RoHS
RoHS compliant
RoHS compliantPackage 8-VDFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) Matte Tin (Sn) Active Step-Down DC to DC switching regulator 12V 3mm 3A 410kHz
PDF
/
Buying Options
Total Price: USD $2.23
Unit Price: USD $2.2264
≥1 USD $2.2264
≥10 USD $2.002
≥100 USD $1.888832
≥500 USD $1.609168
≥1000 USD $1.51096
≥3000 USD $1.322094
Inventory: 11075
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-VDFN
Number of Pins 8
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Published 2012
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) 40
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 36V
Output Type Adjustable
Voltage - Input (Min) 4V
Input Voltage-Nom 12V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 3A
Max Output Voltage 28.5V
Voltage - Output (Min/Fixed) 0.8V
Topology Buck
Control Mode CURRENT-MODE
Frequency - Switching 410kHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 800mV
Dimensions
Length 3mm
Width 3mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
