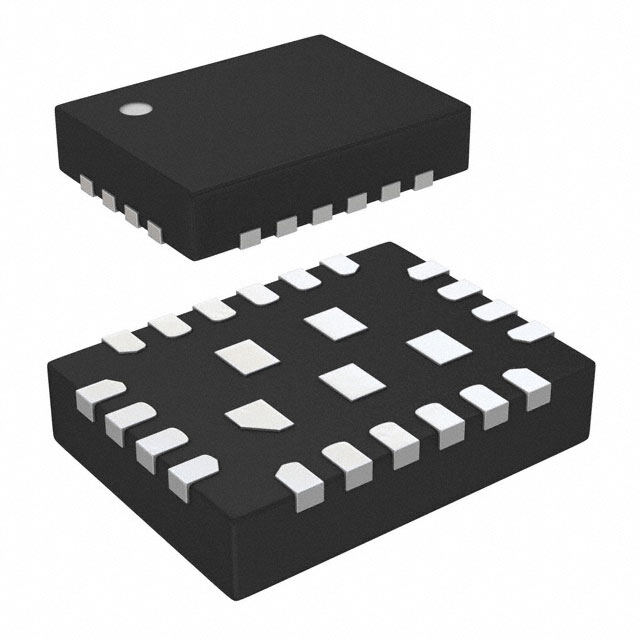

MP9447GL-Z
RoHS
RoHS compliant
RoHS compliantPackage 20-PowerVFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) Matte Tin (Sn) Active Step-Down DC to DC switching regulator 24V 3mm 5A 200kHz~650kHz
PDF
/
Buying Options
Total Price: USD $1.48
Unit Price: USD $1.47725
≥1 USD $1.47725
≥10 USD $1.2122
≥100 USD $1.1742
≥500 USD $1.1362
≥1000 USD $1.0982
Inventory: 107504
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 3mm
Length 4mm
Technical
Voltage - Output (Max) 32.4V
Min Output Voltage 800mV
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 200kHz~650kHz
Topology Buck
Voltage - Output (Min/Fixed) 0.8V
Max Output Voltage 32.4V
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 24V
Voltage - Input (Min) 4.5V
Operating Supply Voltage 36V
Max Output Current 5A
Output Type Adjustable
Output Voltage 32.4V
Number of Outputs 1
Function Step-Down
Time@Peak Reflow Temperature-Max (s) 40
Peak Reflow Temperature (Cel) 260
Terminal Position UNSPECIFIED
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Weight 123.008581mg
Number of Pins 20
Package / Case 20-PowerVFQFN
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
