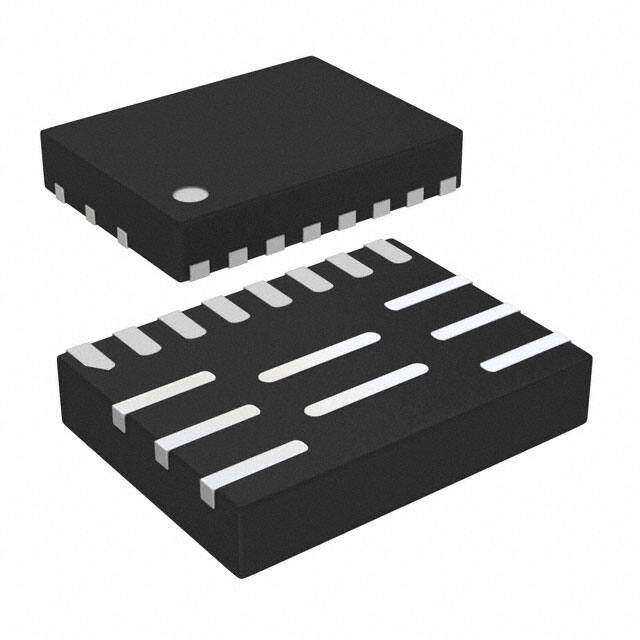

MP8761GLE-P
RoHS
RoHS compliant
RoHS compliantPackage 16-VFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Cut Tape (CT) Discontinued Step-Down 2013 DC to DC switching regulator 18V 8A 200kHz~1MHz -40C~125C TJ
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.14795
≥1 USD $2.14795
≥10 USD $1.7632
≥100 USD $1.7081
≥500 USD $1.653
≥1000 USD $1.5979
Inventory: 426
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-VFQFN
Number of Pins 16
Supplier Device Package 16-QFN (3x4)
Technical
Operating Temperature -40°C~125°C TJ
Packaging Cut Tape (CT)
Published 2013
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 18V
Output Voltage 13V
Output Type Adjustable
Max Output Current 8A
Operating Supply Voltage 18V
Voltage - Input (Min) 4.5V
Output Configuration Positive
Current - Output 8A
Max Output Voltage 13V
Voltage - Output (Min/Fixed) 0.611V
Topology Buck
Min Input Voltage 4.5V
Frequency - Switching 200kHz~1MHz
Max Input Voltage 18V
Synchronous Rectifier Yes
Min Output Voltage 611mV
Voltage - Output (Max) 13V
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
