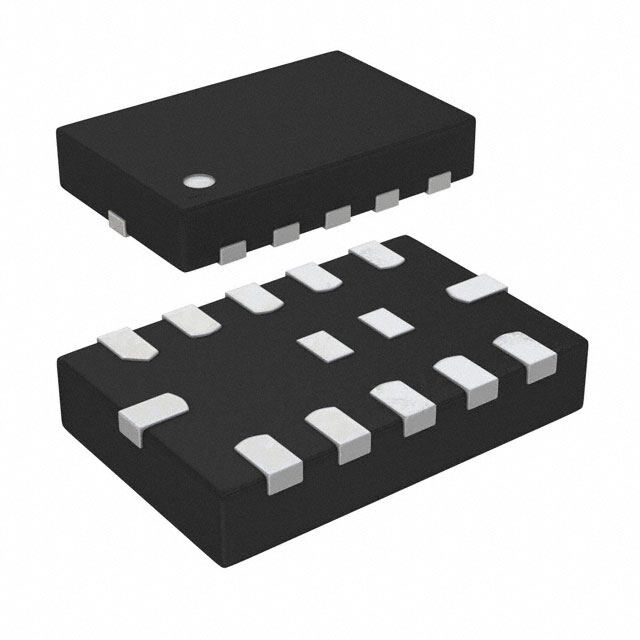

MP2316GD-P
RoHS
RoHS compliant
RoHS compliantPackage 14-VFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Cut Tape (CT) Active Step-Down 2015 DC to DC switching regulator 19V 3mm 3A -40C~125C TJ
PDF
/
Inventory: 4800
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 14-VFQFN
Number of Pins 14
Supplier Device Package 14-QFN (2x3)
Weight 32.205058mg
Technical
Operating Temperature -40°C~125°C TJ
Packaging Cut Tape (CT)
Published 2015
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 19V
Output Type Adjustable
Max Output Current 3A
Operating Supply Voltage 19V
Voltage - Input (Min) 4V
Min Supply Voltage 4V
Operating Supply Current 1μA
Output Configuration Positive
Current - Output 3A
Max Output Voltage 19V
Voltage - Output (Min/Fixed) 0.6V
Topology Buck
Min Input Voltage 4V
Max Input Voltage 19V
Synchronous Rectifier Yes
Min Output Voltage 600mV
Voltage - Output (Max) 19V
Dimensions
Length 2mm
Width 3mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Alternative Model
