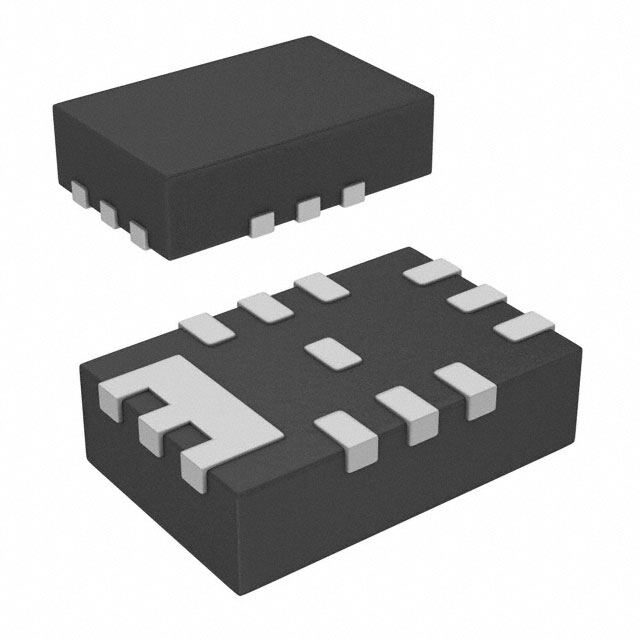

MP2147GD-P
RoHS
RoHS compliant
RoHS compliantPackage 12-PowerVFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) Active Step-Down 2014 DC to DC switching regulator 5.5V 21.99923mg 4A 1.2MHz
PDF
/
Buying Options
Total Price: USD $9.68
Unit Price: USD $9.67765
≥1 USD $9.67765
≥10 USD $7.94105
≥100 USD $7.69215
≥500 USD $7.4442
≥1000 USD $7.19625
Inventory: 3292
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 12-PowerVFQFN
Number of Pins 12
Supplier Device Package 12-QFN (2x3)
Weight 21.99923mg
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Published 2014
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 5.5V
Output Voltage 5.5V
Output Type Adjustable
Max Output Current 4A
Operating Supply Voltage 5.5V
Voltage - Input (Min) 2.8V
Operating Supply Current 40μA
Output Configuration Positive
Current - Output 4A
Max Output Voltage 5.5V
Voltage - Output (Min/Fixed) 0.6V
Topology Buck
Min Input Voltage 2.8V
Frequency - Switching 1.2MHz
Max Input Voltage 5.5V
Synchronous Rectifier Yes
Min Output Voltage 600mV
Voltage - Output (Max) 5.5V
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
