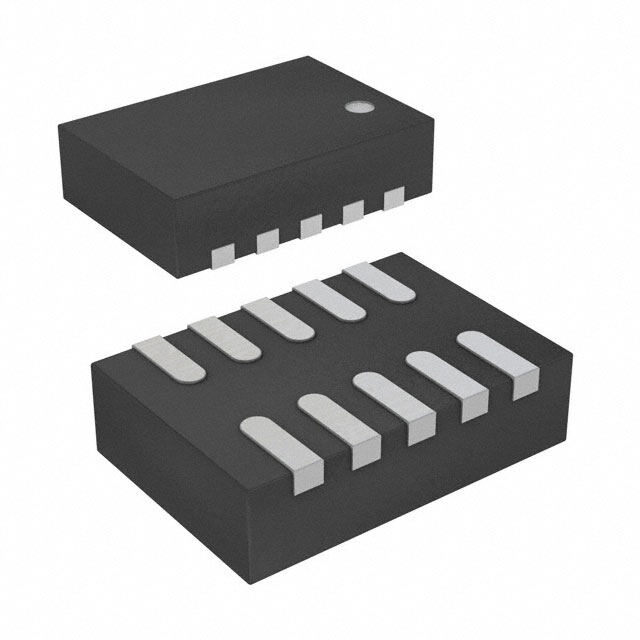

MP1499GD-Z
RoHS
RoHS compliant
RoHS compliantPackage 10-VFDFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) Tin (Sn) Active Step-Down DC to DC switching regulator 12V 2mm 5A 500kHz
PDF
/
Buying Options
Total Price: USD $1.11
Unit Price: USD $1.10675
≥1 USD $1.10675
≥10 USD $0.9082
≥100 USD $0.8797
≥500 USD $0.8512
≥1000 USD $0.8227
Inventory: 71102
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 10-VFDFN
Number of Pins 10
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Published 2012
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Terminal Finish Tin (Sn)
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 40
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 16V
Output Type Adjustable
Voltage - Input (Min) 4.5V
Input Voltage-Nom 12V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 5A
Max Output Voltage 13V
Voltage - Output (Min/Fixed) 0.807V
Topology Buck
Control Mode CURRENT-MODE
Frequency - Switching 500kHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 807mV
Dimensions
Length 3mm
Width 2mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
