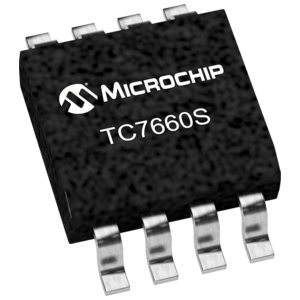

TC7660SEOA713VAO
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
IC REG HIGH VOLT DC-DC CONVERTER
PDF
/
Buying Options
Total Price: USD $2.2
Unit Price: USD $2.197845
≥1 USD $2.197845
≥10 USD $2.073441
≥100 USD $1.956077
≥500 USD $1.845356
≥1000 USD $1.740897
Inventory: 1176
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3.9mm
Length 4.9mm
Height Seated (Max) 1.75mm
Technical
Switching Frequency-Max 45kHz
Switcher Configuration DOUBLER INVERTER
Input Voltage (Max) 12V
Input Voltage (Min) 1.5V
Analog IC - Other Type SWITCHED CAPACITOR REGULATOR
Temperature Grade INDUSTRIAL
Input Voltage-Nom 5V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
JESD-30 Code R-PDSO-G8
Base Part Number TC7660S
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 1.27mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
