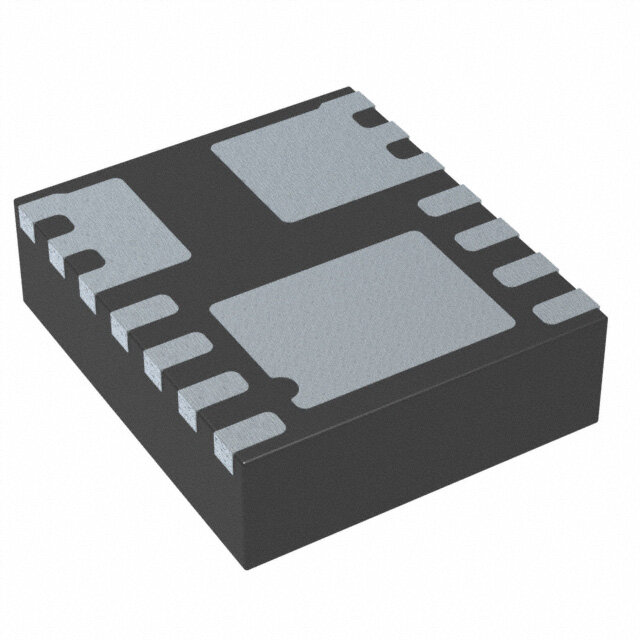

MIC33153-SYHJ-TR
RoHS
RoHS compliant
RoHS compliantPackage 14-PowerTFDFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tape & Reel (TR) Active Step-Down SWITCHING REGULATOR DC to DC switching regulator 3.6V 3mm 1.2A 4MHz
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.8832
≥1 USD $1.8832
≥10 USD $1.5752
≥100 USD $1.4168
Inventory: 1150
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 3mm
Length 3.5mm
Technical
Output Voltage-Max 3.383V
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 4MHz
Control Mode CURRENT-MODE
Topology Buck
Voltage - Output (Min/Fixed) 3.3V
Current - Output 1.2A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 3.6V
Voltage - Input (Min) 2.7V
Output Type Adjustable
Output Voltage 3.3V
Voltage - Input (Max) 5.5V
Number of Outputs 1
Function Step-Down
Reach Compliance Code compliant
Terminal Pitch 0.5mm
Terminal Form NO LEAD
Terminal Position DUAL
Technology CMOS
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series HyperLight Load?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 14-PowerTFDFN
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
Alternative Model
