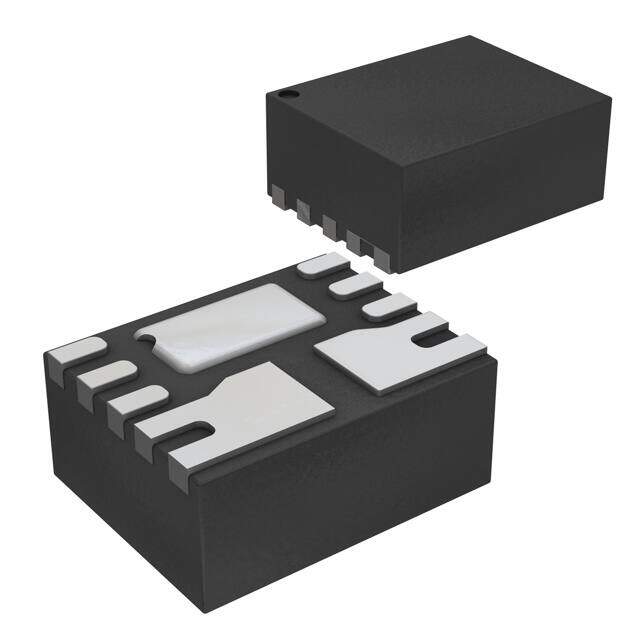

MIC33030-4YHJ-TR
RoHS
RoHS compliant
RoHS compliantPackage 10-PowerTFDFN, 10-MLF?
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
MIC33030 ALSO OPERATES IN PFM MODE Tape & Reel (TR) Active DC to DC switching regulator 3.6V 2mm 400mA 8MHz
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.2584
≥1 USD $1.2584
Inventory: 61
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 10-PowerTFDFN, 10-MLF?
Number of Pins 10
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Published 2016
Series HyperLight Load?
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
Additional Feature ALSO OPERATES IN PFM MODE
Terminal Position DUAL
Terminal Form NO LEAD
Terminal Pitch 0.4mm
Base Part Number MIC33030
Function Step-Down
Number of Outputs 1
Efficiency 75 %
Voltage - Input (Max) 5.5V
Output Voltage 1.2V
Output Type Fixed
Max Output Current 400mA
Input Voltage-Nom 3.6V
Min Supply Voltage 2.7V
Analog IC - Other Type SWITCHING REGULATOR
Nominal Supply Current 21μA
Output Configuration Positive
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 8MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 1.2V
Dimensions
Length 2.5mm
Width 2mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
