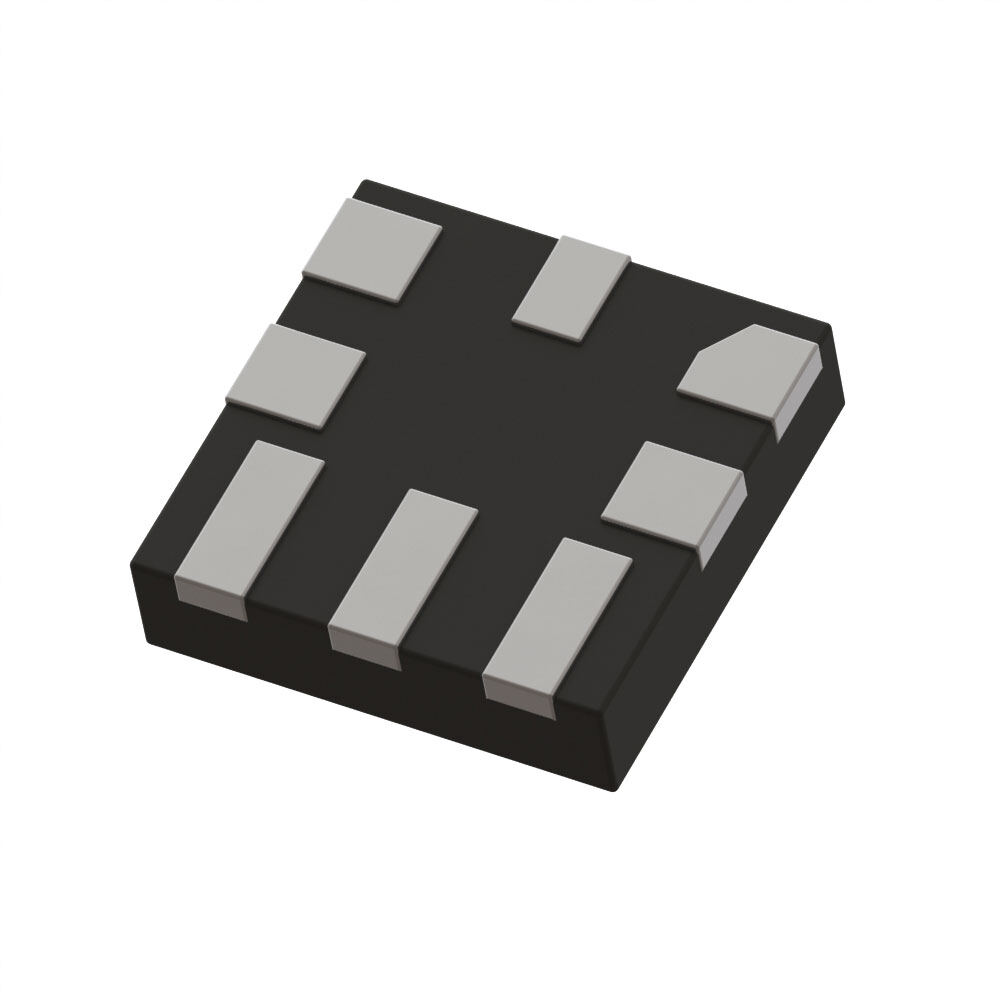

MIC2877-AYFT-TR
RoHS
RoHS compliant
RoHS compliantPackage 8-UQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
MIC2877 SEATED HT-CALCULATED Cut Tape (CT) Matte Tin (Sn) DC to DC switching regulator 2.5V 2mm 2A 2.4kHz
PDF
/
Buying Options
Total Price: USD $1.02
Unit Price: USD $1.0208
≥1 USD $1.0208
≥10 USD $0.8624
≥100 USD $0.7832
Inventory: 18748
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case 8-UQFN
Surface Mount YES
Technical
Packaging Cut Tape (CT)
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Additional Feature SEATED HT-CALCULATED
HTS Code 8542.39.00.01
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number MIC2877
JESD-30 Code S-XQCC-N8
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Output Voltage 5.5V
Input Voltage-Nom 3V
Temperature Grade INDUSTRIAL
Analog IC - Other Type SWITCHING REGULATOR
Output Current 2A
Input Voltage (Min) 2.5V
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Supply Current-Max (Isup) 0.18mA
Switcher Configuration BOOST
Switching Frequency-Max 2.4kHz
Screening Level TS-16949
Dimensions
Height Seated (Max) 0.6mm
Length 2mm
Width 2mm
Compliance
RoHS Status ROHS3 Compliant
