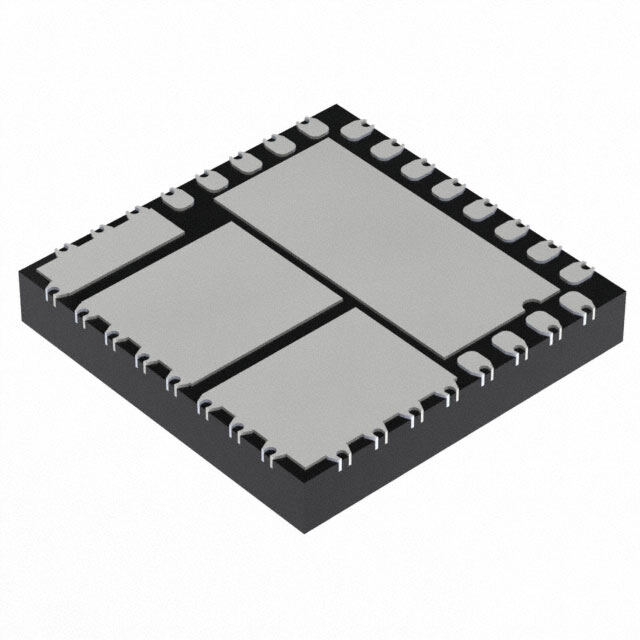

MIC28514T-E/PHA
RoHS
RoHS compliant
RoHS compliantPackage 32-PowerVQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
MIC28514 Tape & Reel (TR) Matte Tin (Sn) Active DC to DC switching regulator 12V 6mm 5A 270kHz~800kHz
PDF
/
Buying Options
Total Price: USD $2.53
Unit Price: USD $2.5256
≥1 USD $2.5256
≥10 USD $2.1032
≥100 USD $1.9008
Inventory: 12633
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6mm
Length 6mm
Height Seated (Max) 0.9mm
Technical
Synchronous Rectifier Yes
Frequency - Switching 270kHz~800kHz
Control Mode VOLTAGE-MODE
Topology Buck
Voltage - Output (Min/Fixed) 0.6V
Current - Output 5A
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 12V
Voltage - Input (Min) 4.5V
Output Type Adjustable
Output Voltage 32V
Voltage - Input (Max) 75V
Number of Outputs 1
Function Step-Down
JESD-30 Code S-PQCC-N32
Base Part Number MIC28514
Terminal Pitch 0.65mm
Supply Voltage 5V
Terminal Form NO LEAD
Terminal Position QUAD
Terminal Finish Matte Tin (Sn)
Number of Terminations 32
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Hyper Speed Control?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 32-PowerVQFN
Mounting Type Surface Mount, Wettable Flank
Supply Chain
Factory Lead Time 12 Weeks
