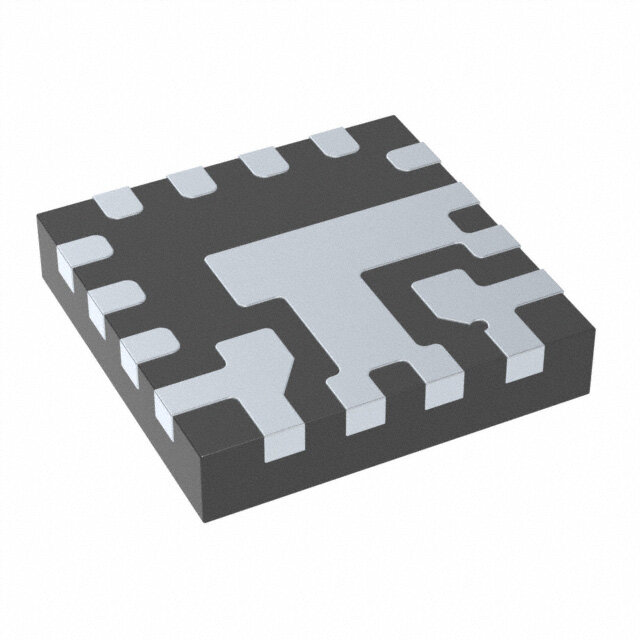

MIC23656-SAYFT-TR image
Favorite
MIC23656-SAYFT-TR image
Favorite

MIC23656-SAYFT-TR

Microchip Technology
RoHS
/
Package 16-PowerUFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description Tape & Reel (TR) Active Step-Down SWITCHING REGULATOR DC to DC switching regulator 5V 2.5mm 6A 1.6MHz 2.2MHz
PDF
/
Inventory: 2989
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mounting Type Surface Mount
Package / Case 16-PowerUFQFN
Surface Mount YES

Technical

Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Series HyperLight Load?
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 16
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Terminal Pitch 0.5mm
Reach Compliance Code compliant
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 5.5V
Output Voltage 1V
Output Type Programmable
Voltage - Input (Min) 2.4V
Input Voltage-Nom 5V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 6A
Voltage - Output (Min/Fixed) 0.6V
Topology Buck
Control Mode VOLTAGE-MODE
Frequency - Switching 1.6MHz 2.2MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Voltage - Output (Max) 3.84V
Output Voltage-Min 0.6V

Dimensions

Height Seated (Max) 0.6mm
Length 2.5mm
Width 2.5mm
